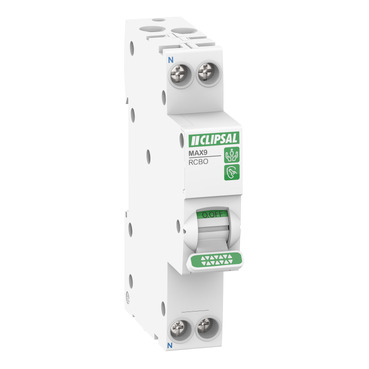

MAX9 Residual Current Breaker with Overcurrent Protection (RCBO)

Item Number: MX9R3116F

1 PCE 0

Product Selector ➚

Retail

$101

RRP (Inc. GST)

Where To Buy

Datasheet

For MX9R3116F

Download

Product Dimensions

Width18 mm

Height93 mm

Depth73 mm

See full specifications

Barcode

Qty	EAN	Colour
1	9311554812911	-
		-
		-

Barcode

Qty	UoM	EAN	Colour
1		9311554812911	-

Ultimate Efficiency and Professional Finish

MAX9 takes the definition of a busbar to next level with MAXBAR. MAXBAR helps to improve installation speed by up to 15 times when compared to using cables for feeding RCBOs
With MAXBAR, no cable connections are needed to feed final sub-circuits protected by an RCBO or AFDD - it picks up the active feed from main switch and distributes both active & neutral across all type of Clipsal RCBOs and AFDDs

MAX Innovation & Performance

Innovation is at the core of everything at Clipsal. MAX9 is no exception to that. MAX9 brings in Arc Fault Detection Device (AFDD) to help take the safety of Australian homes to next level
Enjoy best-in-class performance with 100A rated system. MAX9 products are designed for tough Aussie conditions with operating temperature ranging from -25 Deg C to +70 Deg C with derating
When it comes to circuit protection, it all comes down to what's on the inside. MAX9 breakers are solidly built and designed to endure 20K mechanical cycles and 10K electrical cycles*

Peace of Mind

Amendment 2 of "Wiring rules" mandate type A RCDs from 2023. All RCBOs and RCDs in MAX9 range are already type A so that you can be future ready
MAX9 system comes type tested as per the requirements of AS/NZS 61439-3 to provide you additional peace of mind
Clipsal MAX9 range comes with 7 year warranty for the ultimate peace of mind

Simplify Safety & Digital Experience

Sometimes it could be hard to explain circuit protection category to home owners. MAX9 helps to simplify safety by explaining types of circuit protection to home owners with simple pictograms
MAX9 range takes the digital experience to next level with QR codes on each product to easily access all technical information like specifications, brochures, installation instructions, FAQs and videos

Specifications

Design

Range

MAX9

Product or component type

residual current breaker with overcurrent protection (RCBO)

Warranty

7-year

Physical

[in] rated current

16 A at 30 °C conforming to AS/NZS 61009.1

[ue] rated operational voltage

240 V AC 50/60 Hz

Height

93 mm

Width

18 mm

Depth

73 mm

Net weight

136 g

Connections - terminals

tunnel type terminal (top) - 1...16 mm² - rigid
tunnel type terminal (top) - 1...10 mm² - flexible
tunnel type terminal (bottom) - 1...10 mm² - rigid
tunnel type terminal (bottom) - 1...6 mm² - flexible

Standards

IEC 61009-2-2
EN/IEC 61009-1
AS/NZS 61009.1

Ip degree of protection

IP20

Ambient air temperature for operation

-25...70 °C

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant with Exemptions

Mercury free

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Rohs exemption information

Yes

Environmental disclosure

ENVPEP2210010EN

Circularity profile

N/A

Others

Package 1 bare product quantity

Package 2 bare product quantity

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

Yes

Poles description

1P + N

Number of protected poles

Network type

Network frequency

50/60 Hz

Curve code

Earth-leakage sensitivity

30 mA

Earth-leakage protection class

type A

Earth-leakage protection time delay

40 ms

Breaking capacity

6000 A Icn at 240 V AC 50/60 Hz

Limitation class

[ui] rated insulation voltage

440 V AC 50/60 Hz

[uimp] rated impulse withstand voltage

4 kV

9 mm pitches

Comb busbar and distribution block compatibility

YES

Temperature derating table

-25 °C ( 19.1 A )
-20 °C ( 18.8 A )
-15 °C ( 18.6 A )
-10 °C ( 18.3 A )
-5 °C ( 18 A )
0 °C ( 17.8 A )
5 °C ( 17.5 A )
10 °C ( 17.2 A )
15 °C ( 16.9 A )
20 °C ( 16.6 A )
25 °C ( 16.3 A )
30 °C ( 16 A )
35 °C ( 15.7 A )
40 °C ( 15.4 A )
45 °C ( 15 A )
50 °C ( 14.7 A )
55 °C ( 14.4 A )
60 °C ( 14 A )
65 °C ( 13.7 A )
70 °C ( 13.3 A )

Grid distance

45 mm

Quality labels

RCM

Pollution degree

Overvoltage category

III

Unit type of package 1

PCE

Number of units in package 1

Package 1 height

9.65 cm

Package 1 width

7.15 cm

Package 1 length

1.8 cm

Package 1 weight

151 g

Unit type of package 2

BB1

Number of units in package 2

Package 2 height

8.6 cm

Package 2 width

24.4 cm

Package 2 length

10.3 cm

Package 2 weight

1.812 kg

Sustainable packaging

Yes

Take-back

Product contributes to saved and avoided emissions

Removable battery

N/A

VERSION

1.0

DATE

06 Oct 2022

REVISION

1.0

DOWNLOAD (ZIP) 112.9 KB

Colour ()

MAX9 Residual Current Breaker with Overcurrent Protection (RCBO)

Item Number: MX9R3116F

Colour ()

Datasheet

Product Dimensions

Barcode

Ultimate Efficiency and Professional Finish

Specifications

Design

Physical

Others

Documents & downloads

All

CAD Files and Packs

Product Brochures

Environmental Disclosure

Installation Instruction

Certificates (MSDS)

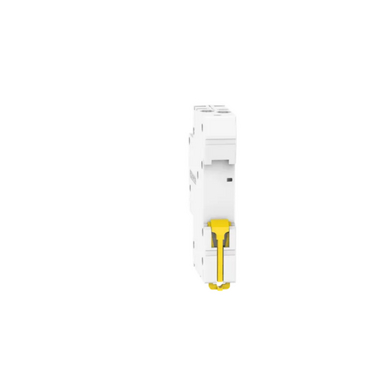

MAX9 - RCBO 1PN C 6A to 32A 10mA and 30mA SLIM 3D Simplified - 3D CAD

MAX9 The ultimate in circuit protection

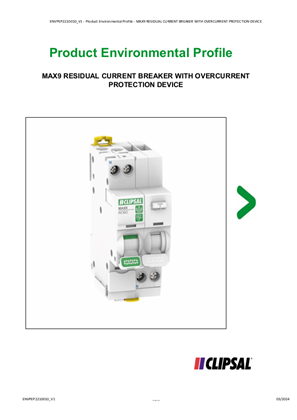

MAX9 RESIDUAL CURRENT BREAKER WITH OVERCURRENT PROTECTION DEVICE

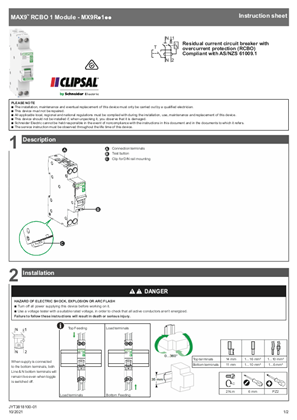

Instruction sheet - Residual current circuit breaker with overcurrent protection (RCBO) 1 Module

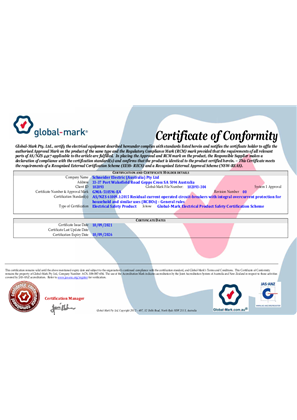

RCM Certificate of Conformity (Approval)

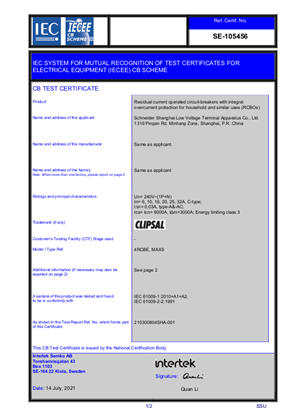

INTERTEK certificate
