MAX9 MAXBAR Top Feed 3P+N, 21 Modules, 100 A with N Block and Accessories

Item Number: MX9B321N

Product Selector ➚

Where To Buy

Datasheet

PDF datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-
max9 MAXBAR
max9 MAXBAR
max9 MAXBAR
max9 MAXBAR

Features

  • MAX Speed – Up to 15 times faster compared to traditional wiring method
  • MAX Professionalism – No cables for feeding RCBOs
  • MAX Performance – 100A rated
  • MAX Ease – All in 1 pack: Busbar + Connector + Teeth cover + End Caps + Neutral terminal block (refs ending with N only)

MAX Flexibility

  • One busbar connects to main switch, all type of Clipsal RCBOs and AFDD
  • Cuttable to have desired number of modules and insulate with End caps
  • Teeth covers to insulate unused modules for future upgrades
  • Available in varying lengths
  • Compatible with Resi MAX SLIM Comb busbar accessories like connector, teeth cover and end caps

Specifications

Design

Product brand

Clipsal

Range

MAX9

Product or component type

comb busbar

Market segment

residential

Sustainable offer status

Green Premium product

Warranty

7-year

Physical

Device presentation

cuttable

Provided equipment

2 end-pieces|6 tooth covers|1 connector|1 neutral terminal block

[ie] rated operational current

100 A

[ue] rated operational voltage

400 V AC

Mounting mode

horizontal

Standards

AS/NZS 61439-3|AS/NZS 3000

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant

Toxic heavy metal free

Yes

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

 Pro-active China RoHS declaration (out of China RoHS legal scope)

Environmental disclosure

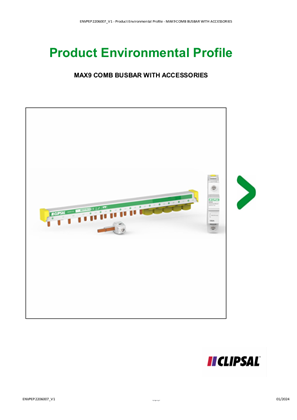

ENVPEP2206007EN

Circularity profile

N/A

Others

Package 1 bare product quantity

1

Total number of 18 mm modules

21

Number of ways

outgoer: 17 ways N + L|incomer: 4 ways N + 3 L

Poles configuration for 1 way

outgoer: 3P + N

Connection pitch

incomer: 18 mm|outgoer: 9 mm

Insulation

insulated

[ui] rated insulation voltage

500 V

[uimp] rated impulse withstand voltage

4 kV

Mounting location

top

Fire resistance

960 °C

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

4.0 cm

Package 1 width

40.0 cm

Package 1 length

12.5 cm

Package 1 weight

363.0 g

Unit type of package 2

CAR

Number of units in package 2

10

Package 2 height

26.5 cm

Package 2 width

24.6 cm

Package 2 length

40.2 cm

Package 2 weight

4.0 kg
Show all specifications
max9 busbar
max9 AFDD
max9 distribution board
max9 icons
max9 busbar
max9 AFDD
max9 distribution board
max9 icons

Ultimate Efficiency and Professional Finish

  • MAX9 takes the definition of  a busbar to next level with MAXBAR. MAXBAR helps to improve installation speed by up to 15 times when compared to using cables for feeding RCBOs
  • With MAXBAR, no cable connections are needed to feed final sub-circuits protected by an RCBO or AFDD - it picks up the active feed from main switch and distributes both active & neutral across all type of Clipsal  RCBOs and AFDDs

MAX Innovation & Performance

  • Innovation is at the core of everything at Clipsal. MAX9 is no exception to that. MAX9 brings in Arc Fault Detection Device (AFDD) to help take the safety of Australian homes to next level
  • Enjoy best-in-class performance with 100A rated system. MAX9 products are designed for tough Aussie conditions with operating temperature ranging from -25 Deg C to +70 Deg C with derating
  • When it comes to circuit protection, it all comes down to what's on the inside. MAX9 breakers are solidly built and designed to endure 20K mechanical cycles and 10K electrical cycles*

Peace of Mind

  • Amendment 2 of "Wiring rules" mandate type A RCDs from 2023. All RCBOs and RCDs in MAX9 range are already type A so that you can be future ready
  • MAX9 system comes type tested as per the requirements of AS/NZS 61439-3 to provide you additional peace of mind
  • Clipsal MAX9 range comes with 7 year warranty for the ultimate peace of mind

Simplify Safety & Digital Experience

  • Sometimes it could be hard to explain circuit protection category to home owners. MAX9 helps to simplify safety by explaining types of circuit protection to home owners with simple pictograms
  • MAX9 range takes the digital experience to next level with QR codes on each product to easily access all technical information like specifications, brochures, installation instructions, FAQs and videos
