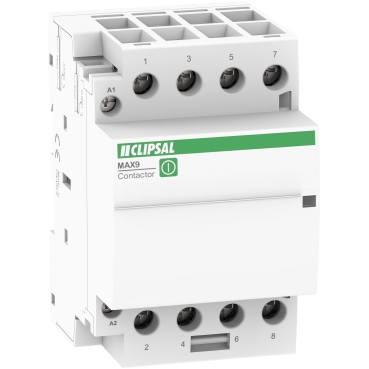

MAX9 Contactor

Item Number: MX9C136340

1 PCE 0

Product Selector ➚

Contact your Wholesaler for pricing

Where To Buy

Datasheet

For MX9C136340

Download

Product Dimensions

Width54 mm

Height81 mm

Depth63 mm

See full specifications

Barcode

Qty	EAN	Colour
1	9311554814373	-
		-
		-

Barcode

Qty	UoM	EAN	Colour
1		9311554814373	-

Specifications

Design

Range

MAX9

Product or component type

contactor

Device application

control circuit

Product compatibility

no auxiliary

Market segment

residential

Warranty

7-year

Physical

[ie] rated operational current

63 A AC-7A

Control type

remote control

[ue] rated operational voltage

415 V AC 50 Hz

Mounting mode

clip-on

Mounting support

35 mm symmetrical DIN rail

Height

81 mm

Width

54 mm

Depth

63 mm

Net weight

380 g

Mechanical durability

1000000 cycles

Electrical durability

100000 cycles 240 V 25 A AC 50 Hz

Connections - terminals

power: tunnel type terminal1 cable(s) 6-16 mm² flexible
power: tunnel type terminal2 cable(s) 6-10 mm² flexible
power: tunnel type terminal1 cable(s) 6-25 mm² rigid
power: tunnel type terminal2 cable(s) 6-10 mm² rigid
control: tunnel type terminal1 cable(s) 0.5-4 mm² flexible
control: tunnel type terminal2 cable(s) 0.5-2.5 mm² flexible
control: tunnel type terminal1 cable(s) 0.5-6 mm² rigid
control: tunnel type terminal2 cable(s) 0.5-2.5 mm² rigid

Wire stripping length

14 mm

Ip degree of protection

IP20 (modular enclosure) conforming to IEC 60529

Relative humidity

95 % at 55 °C

Ambient air temperature for operation

-5...70 °C

Ambient air temperature for storage

-40...70 °C

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant

Toxic heavy metal free

Yes

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

Environmental disclosure

ENVPEP110308EN

Circularity profile

N/A

Others

Package 1 bare product quantity

Packaging made with recycled cardboard

Packaging without single use plastic

Poles description

Pole contact composition

4 NO

Network type

Utilisation category

AC-7A

[uc] control circuit voltage

240 V AC 50 Hz

Network frequency

50 Hz

Maximum power

2.1 W at 415 V AC 50 Hz

[ui] rated insulation voltage

500 V AC 50 Hz conforming to EN 61095

[uimp] rated impulse withstand voltage

2.5 kV

Switching frequency

100 switching operations/day

Hold-in power consumption in va

6.5...6.5 VA

Inrush power in va

53 VA

Comb busbar and distribution block compatibility

9 mm pitches

Total power losses

21 W

Power losses per pole

7 W

Tightening torque

power: 3.5...3.5 N.m
control: 0.8...0.8 N.m

Temperature derating table

40 °C ( 63 A )
50 °C ( 59.8 A )
60 °C ( 50 A )

Quality labels

RCM

Noise level

30 dB

Heat dissipation

28 W at 50 Hz

Pollution degree

Overvoltage category

III

Tropicalisation

severity B

Operating altitude

2000 m

Unit type of package 1

PCE

Number of units in package 1

Package 1 height

5.6 cm

Package 1 width

11.1 cm

Package 1 length

12.1 cm

Package 1 weight

410.5 g

Unit type of package 2

S03

Number of units in package 2

Package 2 height

30 cm

Package 2 width

30 cm

Package 2 length

40 cm

Package 2 weight

11.994 kg

Take-back

Product contributes to saved and avoided emissions

Removable battery

N/A

VERSION

1.0

DATE

23 Feb 2024

REVISION

1.0

DOWNLOAD (ZIP) 781.6 KB
