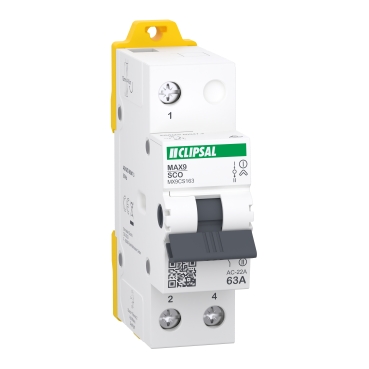

MAX9, Changeover switch, 1P, 63A

Home ProductsCircuit ProtectionMax9Changeover switch

MAX9, Changeover switch, 1P, 63A

Item Number: MX9CS163

Where To Buy

Datasheet

PDF datasheet

Download

Product Dimensions

Width icon

Width26.25 mm

Height icon

Height85 mm

Depth icon

Depth44 mm

See full specifications

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range

MAX9

Product or component type

changeover switch

Device application

change source of supply

Market segment

residential|small buildings

Physical

[ue] rated operational voltage

230/240 V

Control type

toggle

Mounting support

35 mm DIN rail

Mounting position

vertical|any position

Connections - terminals

screw terminals (top and bottom) 1-16 mm² flexible|screw terminals (top and bottom) 1-16 mm² flexible with ferrule|screw terminals (top and bottom) 1-25 mm² rigid

Wire stripping length

12 mm for top and bottom connection

Electrical durability

7000 cycles

Mechanical durability

10000 cycles

Height

85 mm

Width

26.25 mm

Depth

44 mm

Net weight

120 g

Standards

EN/IEC 60947-3|AS/NZS 60947-3

Ip degree of protection

IP20|IP40 inside enclosure

Ambient air temperature for operation

-25...60 °C

Reach regulation

Free of Substances of Very High Concern above the threshold

Reach free of svhc

Yes

Eu rohs directive

Compliant

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

 Pro-active China RoHS declaration (out of China RoHS legal scope)

Environmental disclosure

ENVPEP2112003EN

Circularity profile

N/A

Others

Commercial status history

SESA65410 | Thu Aug 29 21:06:00 EDT 2024 | From Unitary Local | From 06 to 08

Package 1 bare product quantity

1

Package 2 bare product quantity

63

Package 3 bare product quantity

756

Poles description

1P

Network type

AC

Network frequency

50/60 Hz

Utilisation category

AC-23A|AC-22A

[ui] rated insulation voltage

690 V

[uimp] rated impulse withstand voltage

6 kV

Rated operational power in w

7.8 kW at 240 V (AC-23A)|12 kW at 240 V (AC-22A)|7.5 kW at 230 V (AC-23A)|11.6 kW at 230 V (AC-22A)

[icm] rated short-circuit making capacity

1.26 kA

[icw] rated short-time withstand current

1.26 kA during 1 s at 230/240 V

Number of contact position

3

Locking options description

padlock in ON position

Tightening torque

4 N.m top and bottom

Suitability for isolation

yes

Contact position indicator

yes

9 mm pitches

3

Pollution degree

3

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

8.6 cm

Package 1 width

3.5 cm

Package 1 length

10.9 cm

Package 1 weight

140 g

Unit type of package 2

S03

Number of units in package 2

63

Package 2 height

30 cm

Package 2 width

30 cm

Package 2 length

40 cm

Package 2 weight

9.3 kg

Unit type of package 3

P06

Number of units in package 3

756

Package 3 height

104.6 cm

Package 3 width

60 cm

Package 3 length

80 cm

Package 3 weight

120 kg

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Carbon footprint (kg.eq.co2 per cr, total life cycle)

57.7741359619839
Show all specifications
