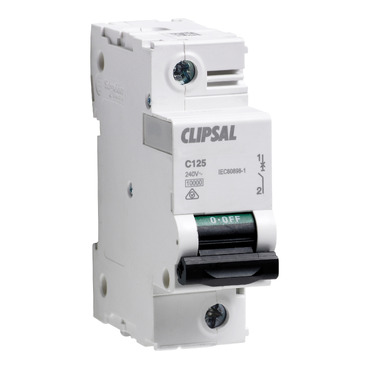

Clipsal - Max 4, Miniature Circuit Breaker, 1.5 Module, 1 Pole, 240V, 80A, 27mm, 10kA

Home ProductsCircuit ProtectionMax 4Miniature Circuit Breaker

Clipsal - Max 4, Miniature Circuit Breaker, 1.5 Module, 1 Pole, 240V, 80A, 27mm, 10kA

Item Number: 4CB180D10

Where To Buy

Datasheet

PDF datasheet

Download

Product Dimensions

Width icon

Width27 mm

Height icon

Height91 mm

Depth icon

Depth78.5 mm

See full specifications

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Product brand

Clipsal

Sustainable offer status

Green Premium product

Physical

Number of poles

1

[in] rated current

80 A

[ue] rated operational voltage

240 V

Mechanical durability

20000 cycles

Electrical durability

5000 cycles

Connections - terminals

screw terminal for 1 cable(s) 1-50 mm² rigid|screw terminal for 1 cable(s) 1.5-35 mm² flexible|screw terminal for 1 cable(s) 1.5-35 mm² flexible with ferrule

Wire stripping length

15 mm

Ip degree of protection

IP20 conforming to IEC 60529|IP40 (modular enclosure) conforming to IEC 60529

Ambient air temperature for operation

-25...70 °C

Ambient air temperature for storage

-40...70 °C

Standards

AS/NZS 60898

Relative humidity

95 % at 55 °C

Height

91 mm

Width

27 mm

Depth

78.5 mm

Net weight

205 g

Reach free of svhc

Yes

Eu rohs directive

Compliant

Toxic heavy metal free

Yes

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

 Pro-active China RoHS declaration (out of China RoHS legal scope)

Environmental disclosure

ENVPEP121230EN

Others

Package 1 bare product quantity

1

Curve code

D

Number of modules

1.5

Breaking capacity

10 kA conforming to IEC 60947-2

Network type

AC

Network frequency

50/60 Hz

[uimp] rated impulse withstand voltage

6 kV

[ui] rated insulation voltage

500 V

Tightening torque

3.5 N.m

Pollution degree

3

Tropicalisation

2 conforming to IEC 60068-1

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

7.5 cm

Package 1 width

8.8 cm

Package 1 length

2.9 cm

Package 1 weight

192 g
