Clipsal - Max 4 Meter link
Item Number: BPT1
Retail
$50
RRP (Inc. GST)

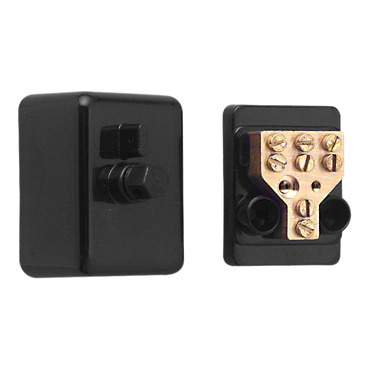

This Clipsal MAX4 product is a black meter link with 4 mounting holes. The Ue rated operational voltage is 500V. The In rated current is 70A.
Specifications
Design
Product brand
Clipsal
Range of product
Blue Point
Product or component type
meter link
Physical
[in] rated current
70 A
[ue] rated operational voltage
500 V
Connector type
screw terminals
Number of poles
1
Height
52 mm
Width
40 mm
Depth
39 mm
Reach regulation
Reference contains Substances of Very High Concern above the threshold
Eu rohs directive
Compliant with Exemptions
Mercury free
Yes
China rohs regulation
Product out of China RoHS scope. Substance declaration for your information
Rohs exemption information
Yes
Circularity profile
N/A
