Specifications
Design
Product brand
Clipsal
Range of product
Blue Point

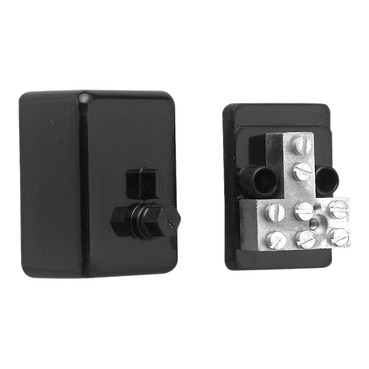

Product or component type
meter link
Physical
[in] rated current
90 A
[ue] rated operational voltage
500 V
Connector type
screw terminals
Number of poles
1
Height
58 mm
Width
40 mm
Depth
40 mm
Reach regulation
Reference contains Substances of Very High Concern above the threshold
Eu rohs directive
Compliant with Exemptions
Mercury free
Yes
China rohs regulation
Product out of China RoHS scope. Substance declaration for your information
Rohs exemption information
Yes
Circularity profile
N/A
