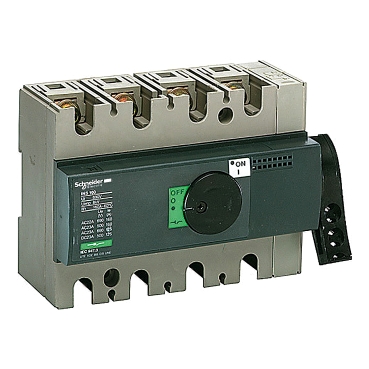

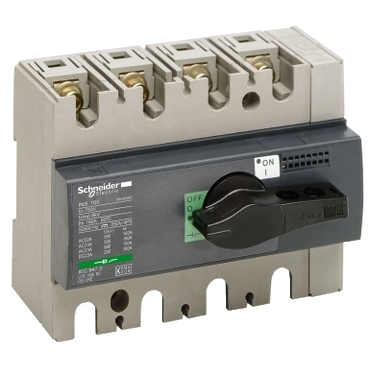

Compact Interpact Switch Disconnector

Item Number: 28912

1 PCE 0

Retail

N/A

RRP (Inc. GST)

Where To Buy

Datasheet

For 28912

Download

Product Dimensions

Width135 mm

Height100 mm

Depth62.5 mm

See full specifications

Barcode

Qty	EAN	Colour
1	3303430289128	-
		-
		-

Barcode

Qty	UoM	EAN	Colour
1		3303430289128	-

Specifications

Design

Range

ComPact

Range of product

INS40...160

Product or component type

switch disconnector

Warranty

18 months

Physical

[ie] rated operational current

AC-22A: 160 A AC 50/60 Hz 220/240 V
AC-22A: 160 A AC 50/60 Hz 380/415 V
AC-22A: 160 A AC 50/60 Hz 440/480 V
DC-22A: 160 A DC 125 V 2 poles in series
AC-22A: 160 A AC 50/60 Hz 500 V
AC-22A: 160 A AC 50/60 Hz 660/690 V
AC-23A: 100 A AC 50/60 Hz 660/690 V
AC-23A: 160 A AC 50/60 Hz 220/240 V
AC-23A: 160 A AC 50/60 Hz 380/415 V
AC-23A: 160 A AC 50/60 Hz 440/480 V
AC-23A: 160 A AC 50/60 Hz 500 V
DC-23A: 160 A DC 125 V 2 poles in series

[ue] rated operational voltage

125 V DC
690 V AC 50/60 Hz

Control type

rotary handle

Mounting mode

fixed

Mounting support

plate
DIN rail

Mechanical durability

15000 cycles

Electrical durability

AC-22A: 1500 cycles 220/240 V AC 50/60 Hz
AC-22A: 1500 cycles 380/415 V AC 50/60 Hz
AC-22A: 1500 cycles 440 V AC 50/60 Hz
AC-22A: 1500 cycles 500 V AC 50/60 Hz
AC-23A: 1500 cycles 220/240 V AC 50/60 Hz
AC-23A: 1500 cycles 380/415 V AC 50/60 Hz
AC-23A: 1500 cycles 440 V AC 50/60 Hz
AC-23A: 1500 cycles 500 V AC 50/60 Hz
DC-22A: 1500 cycles 125 V DC 2 poles in series
DC-23A: 1500 cycles 125 V DC 2 poles in series
AC-22A: 1500 cycles 690 V AC 50/60 Hz
AC-23A: 1500 cycles 690 V AC 50/60 Hz

Height

100 mm

Width

135 mm

Depth

62.5 mm

Net weight

0.8 kg

Standards

IEC 60947-3
IEC 60947-1

Product certifications

CCC
KEMA-KEUR

Ip degree of protection

IP40 conforming to IEC 60529

Ik degree of protection

IK07 conforming to EN 50102

Ambient air temperature for operation

-25...70 °C

Ambient air temperature for storage

-50...85 °C

China rohs regulation

Environmental disclosure

ENVPEP1304025

Circularity profile

ENVEOLI1304025

California proposition 65

WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Others

Life cycle assessment data

Yes

Substance regulation data deliverable

Yes

Package 1 bare product quantity

Package 2 bare product quantity

Package 3 bare product quantity

Product name

ComPacT INS

Device short name

Compact INS160

Switch-disconnector name

Compact INS160

Poles description

Network type

Network frequency

50/60 Hz

[ui] rated insulation voltage

800 V AC 50/60 Hz

[uimp] rated impulse withstand voltage

8 kV

[ith] conventional free air thermal current

160 A at 60 °C

[icm] rated short-circuit making capacity

154 kA with upstream protection circuit breaker 690 V AC at 50/60 Hz
20 kA switch-disconnector alone 690 V AC at 50/60 Hz

Suitability for isolation

yes

Contact position indicator

yes

Visible break

Pollution degree

Handle colour

black

Upside connection

front

Downside connection

front

Maximum power

AC-23: 110 kW at 500/525 V AC 50/60 Hz
AC-23: 45 kW at 220/240 V AC 50/60 Hz
AC-23: 75 kW at 380/415 V AC 50/60 Hz
AC-23: 90 kW at 440 V AC 50/60 Hz
AC-23: 90 kW at 660/690 V AC 50/60 Hz

Rated duty

uninterrupted

Intermittent duty class

class 120 - 60 %

[icw] rated short-time withstand current

1 kA during 30 s conforming to IEC 60947-3
1.23 kA during 20 s conforming to IEC 60947-3
3.175 kA during 3 s conforming to IEC 60947-3
5.5 kA during 1 s conforming to IEC 60947-3

Connection pitch

30 mm

Compatibility code

INS160

Unit type of package 1

PCE

Number of units in package 1

Package 1 height

13.500 cm

Package 1 width

11.500 cm

Package 1 length

15.500 cm

Package 1 weight

1.032 kg

Unit type of package 2

S03

Number of units in package 2

Package 2 height

30.000 cm

Package 2 width

30.000 cm

Package 2 length

40.000 cm

Package 2 weight

10.676 kg

Unit type of package 3

P12

Number of units in package 3

Package 3 height

43.000 cm

Package 3 width

80.000 cm

Package 3 length

120.000 cm

Package 3 weight

97.000 kg

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

Weee

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Take-back

Product contributes to saved and avoided emissions

Removable battery

N/A

Carbon footprint (kg.eq.co2 per cr, total life cycle)

182.529649331306

Global warming ; total life cycle

183 kg CO2 eq.
