ComPact Switch disconnector

Item Number: 31110

1 PCE 0

Retail

N/A

RRP (Inc. GST)

Where To Buy

Datasheet

For 31110

Download

Product Dimensions

Width185 mm

Height205 mm

Depth120 mm

See full specifications

Barcode

Qty	EAN	Colour
1	3303430311102	-
		-
		-

Barcode

Qty	UoM	EAN	Colour
1		3303430311102	-

Specifications

Design

Range

ComPact

Range of product

INS320...630

Product or component type

switch disconnector

Warranty

18 months

Physical

[ie] rated operational current

AC-22A: 400 A AC 50/60 Hz 220/240 V
AC-22A: 400 A AC 50/60 Hz 380/415 V
AC-22A: 400 A AC 50/60 Hz 440/480 V
AC-22A: 400 A AC 50/60 Hz 480 V NEMA
AC-22A: 400 A AC 50/60 Hz 500/525 V
AC-22A: 400 A AC 50/60 Hz 660/690 V
AC-23A: 400 A AC 50/60 Hz 220/240 V
AC-23A: 400 A AC 50/60 Hz 380/415 V
AC-23A: 400 A AC 50/60 Hz 440/480 V
AC-23A: 400 A AC 50/60 Hz 480 V NEMA
AC-23A: 400 A AC 50/60 Hz 500/525 V
AC-23A: 400 A AC 50/60 Hz 660/690 V
DC-22A: 400 A DC 125 V 2 poles in series
DC-23A: 400 A DC 125 V 2 poles in series

[ue] rated operational voltage

125 V DC
690 V AC 50/60 Hz

Control type

direct front rotary handle

Mounting mode

fixed

Mounting support

plate
rail

Mechanical durability

10000 cycles

Electrical durability

AC-22A: 1500 cycles 440 V AC 50/60 Hz
AC-22A: 1500 cycles 500 V AC 50/60 Hz
AC-22A: 1500 cycles 690 V AC 50/60 Hz
AC-23A: 1500 cycles 440 V AC 50/60 Hz
AC-23A: 1500 cycles 500 V AC 50/60 Hz
AC-23A: 1500 cycles 690 V AC 50/60 Hz
DC-23A: 1000 cycles 125 V DC 2 poles in series

Height

205 mm

Width

185 mm

Depth

120 mm

Net weight

4.6 kg

Standards

IEC 60947-1
IEC 60947-3

Product certifications

KEMA-KEUR
CCC

Ip degree of protection

IP40 conforming to IEC 60529

Ik degree of protection

IK07 conforming to EN 50102

Ambient air temperature for operation

-25...70 °C

Ambient air temperature for storage

-50...85 °C

Eu rohs directive

Compliant with Exemptions

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Environmental disclosure

ENVPEP1304025

Circularity profile

ENVEOLI1304025

California proposition 65

WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Others

Package 1 bare product quantity

Substance regulation data deliverable

Yes

Life cycle assessment data

Yes

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

Product name

ComPacT INS

Device short name

Interpact INS400

Switch-disconnector name

Interpact INS400

Poles description

Network type

Network frequency

50/60 Hz

[ui] rated insulation voltage

800 V AC 50/60 Hz

[uimp] rated impulse withstand voltage

8 kV
8 kV conforming to IEC 60947-3

[ith] conventional free air thermal current

400 A at 60 °C

[icm] rated short-circuit making capacity

330 kA with upstream protection circuit breaker 690 V AC at 50/60 Hz
50 kA switch-disconnector alone 690 V AC at 50/60 Hz

Suitability for isolation

yes

Contact position indicator

yes

Visible break

Pollution degree

Handle colour

black

Upside connection

front

Downside connection

front

Maximum power

AC-23: 110 kW at 220/240 V AC 50/60 Hz
AC-23: 110 kW at 230 V AC 50/60 Hz (NEMA)
AC-23: 200 kW at 380/415 V AC 50/60 Hz
AC-23: 220 kW at 440 V AC 50/60 Hz
AC-23: 220 kW at 480 V AC 50/60 Hz (NEMA)
AC-23: 250 kW at 500/525 V AC 50/60 Hz
AC-23: 400 kW at 660/690 V AC 50/60 Hz

Rated duty

uninterrupted

[icw] rated short-time withstand current

11.5 kA during 3 s conforming to IEC 60947-3
20 kA during 1 s conforming to IEC 60947-3
4 kA during 30 s conforming to IEC 60947-3
4.9 kA during 20 s conforming to IEC 60947-3

Connection pitch

45 mm

Compatibility code

INS400

Unit type of package 1

PCE

Number of units in package 1

Package 1 height

19.000 cm

Package 1 width

19.000 cm

Package 1 length

22.600 cm

Package 1 weight

5.000 kg

Unit type of package 2

S04

Number of units in package 2

Package 2 height

30.000 cm

Package 2 width

40.000 cm

Package 2 length

60.000 cm

Package 2 weight

20.766 kg

Unit type of package 3

P12

Number of units in package 3

Package 3 height

50.000 cm

Package 3 width

80.000 cm

Package 3 length

120.000 cm

Package 3 weight

95.144 kg

Weee

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Take-back

Product contributes to saved and avoided emissions

Removable battery

N/A

Global warming ; total life cycle

371 kg CO2 eq.

Carbon footprint (kg.eq.co2 per cr, total life cycle)

370.781945696537

Show all specifications

Documents & downloads

hide show

Colour ()

ComPact Switch disconnector

Item Number: 31110

Colour ()

Datasheet

Product Dimensions

Barcode

Specifications

Design

Physical

Others

Documents & downloads

All

CAD Files and Packs

Technical Data Catalogues

End of Life Manual

Environmental Disclosure

Installation Instruction

Technical Drawing

Certificates (MSDS)

ComPact INS320 3P with black handle - CAD

Compact INS320 to INS630 & INV320 to INV630 3P; Switch Disconnector - 3D CAD

Compact switch-disconnectors INS-INV40 to 2500 A catalog

ComPacT NSX - ComPacT INS INV - MasterPacT NW - DC-DC PV-DC EP catalog

COMPACT INS250 / COMPACT INV100 to INV250

COMPACT INS250 / COMPACT INV100 to INV250

ComPact INS320 3P with black handle - CAD

Compact INS320 to INS630 & INV320 to INV630 3P; Switch Disconnector - 3D CAD

Compact switch-disconnectors INS-INV40 to 2500 A catalog

ComPacT NSX - ComPacT INS INV - MasterPacT NW - DC-DC PV-DC EP catalog

COMPACT INS250 / COMPACT INV100 to INV250

COMPACT INS250 / COMPACT INV100 to INV250

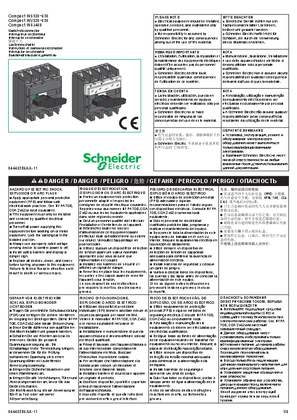

Compact INS320-630 - Compact INV320-630 - Compact INSJ400 - Switch-disconnector

Auxiliary contact Early make contact CAF Presentation - Description

39346_B1_BV_Marine Type Approval Certificate_Compact INS/INV

TAE00001YE_DNV Marine Type Approval Certificate_Compact INS/INV

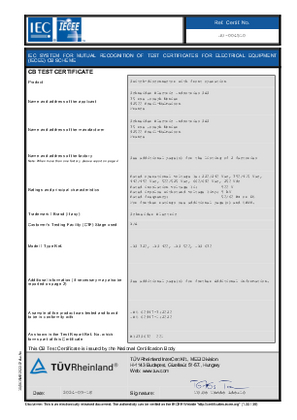

CB_Certificate_INS 320-630
