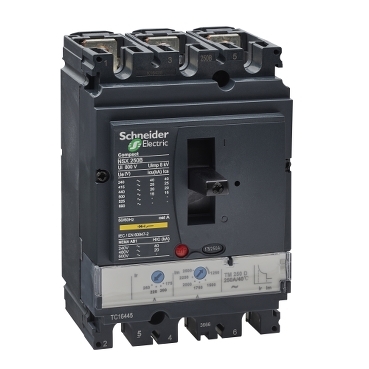

Compact NSX <630, Circuit breaker, ComPact NSX250B, 25kA/415VAC, TMD trip unit 250A, 3 poles 3d

Item Number: LV431110

Where To Buy

Datasheet

PDF datasheet

Download

Product Dimensions

Width icon

Width105 mm

Height icon

Height161 mm

Depth icon

Depth86 mm

See full specifications

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range

ComPact

Range of product

ComPact NSX100...250

Product or component type

circuit breaker

Device application

distribution

Sustainable offer status

Green Premium product

Warranty

18 months

Physical

[in] rated current

250 A at 40 °C

[ue] rated operational voltage

690 V AC 50/60 Hz

Control type

toggle

Mounting mode

fixed

Mechanical durability

20000 cycles

Electrical durability

5000 cycles at 690 V In|10000 cycles at 690 V In/2|10000 cycles at 440 V In|20000 cycles at 440 V In/2

Mounting support

backplate

Protection type

L : for overload protection (thermal)|I : for short-circuit protection (magnetic)

Width

105 mm

Height

161 mm

Depth

86 mm

Net weight

2.4 kg

Standards

EN/IEC 60947

Product certifications

CCC|EAC|Marine

Ip degree of protection

IP40 conforming to IEC 60529

Ik degree of protection

IK07 conforming to IEC 62262

Ambient air temperature for operation

-25...70 °C

Ambient air temperature for storage

-50...85 °C

Relative humidity

0...95 %

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant with Exemptions

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Environmental disclosure

ENVPEP2301020EN

Circularity profile

ENVEOLI2301020EN

California proposition 65

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Others

Commercial status history

SESA65410 | Mon Apr 08 22:45:00 EDT 2024 | From Import Local | From 18 to 19

Important message

This product has been switched to new ComPacT range and is no longer commercialized.

Package 1 bare product quantity

1

Product name

ComPact NSX

Device short name

NSX250B

Poles description

3P

Protected poles description

3t

Network type

AC

Network frequency

50/60 Hz

Suitability for isolation

yes conforming to EN/IEC 60947-2

Utilisation category

category A

Breaking capacity

15 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2|20 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2|25 kA Icu at 380/415 V AC 50/60 Hz conforming to IEC 60947-2|40 kA Icu at 220/240 V AC 50/60 Hz conforming to IEC 60947-2

Breaking capacity code

B 25 kA 415 V AC

Trip unit name

TM-D

Trip unit technology

thermal-magnetic

Trip unit protection functions

LI

[ui] rated insulation voltage

800 V AC 50/60 Hz

[uimp] rated impulse withstand voltage

8 kV

[ics] rated service breaking capacity

20 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2|25 kA at 380/415 V AC 50/60 Hz conforming to IEC 60947-2|40 kA at 220/240 V AC 50/60 Hz conforming to IEC 60947-2|15 kA at 500 V AC 50/60 Hz conforming to IEC 60947-2

Upside connection

front

Downside connection

front

Connection pitch

35 mm

Trip unit rating

250 A at 40 °C

Long time pick-up adjustment type ir

adjustable

Long time pick-up adjustment range

0.7...1 x In

Long time delay adjustment type

fixed

[tr] long-time delay adjustment range

120...400 s at 1.5 x In|15 s at 6 x Ir

Short-time pick-up adjustment type isd

adjustable

[isd] short-time pick-up adjustment range

5...10 x In

Short-time delay adjustment type

fixed

Earth-leakage protection

without

Number of slots

5 slot(s)

Compatibility code

NSX250

Overvoltage category

class II

Electrical shock protection class

class II

Pollution degree

3 conforming to IEC 60664-1

Operating altitude

0...2000 m without derating|2000 m...5000 m with derating

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

13.7 cm

Package 1 width

11.4 cm

Package 1 length

18.9 cm

Package 1 weight

1.991 kg

Unit type of package 2

S04

Number of units in package 2

12

Package 2 height

30.0 cm

Package 2 width

40.0 cm

Package 2 length

60.0 cm

Package 2 weight

24.742 kg

Weee

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Carbon footprint (kg.eq.co2 per cr, total life cycle)

763.0238483422
