Acti9 Single indicator light

Item Number: A9E18334

1 PCE 0

Retail

$76

RRP (Inc. GST)

Where To Buy

Datasheet

For A9E18334

Download

Product Dimensions

Width18 mm

Height82 mm

Depth69.5 mm

See full specifications

Barcode

Qty	EAN	Colour
1	3606480088452	-
12	13606480088459	-
		-

Barcode

Qty	UoM	EAN	Colour
1		3606480088452	-
12		13606480088459	-

Specifications

Design

Range of product

Acti9

Range

Acti9

Product or component type

modular pilot light

Market segment

small commercial
residential

Warranty

18 months

Physical

Local signalling

1 LED yellow, service life 100000 h of constant lighting efficiency (consumption 0.3 W)

Mounting mode

fixed

Mounting support

symmetrical DIN rail

Height

82 mm

Width

18 mm

Depth

69.5 mm

Wire stripping length

9 mm

Standards

IEC 60947-5-1

Ip degree of protection

IP2
IPxx B

Relative humidity

95 % at 55 °C

Ambient air temperature for operation

-35...70 °C

Ambient air temperature for storage

-40...80 °C

China rohs regulation

Environmental disclosure

ENVPEP110301EN

Circularity profile

N/A

Others

Package 1 bare product quantity

Package 2 bare product quantity

Package 3 bare product quantity

108

Product name

Acti9 iIL

Device short name

iIL

[us] rated supply voltage

12...48 V AC at 50/60 Hz
12...48 V DC

Comb busbar and distribution block compatibility

upside: ProDis

9 mm pitches

Auxiliary connection terminal

tunnel type terminal 1 cable(s) rigid 0.5-0.5 mm²
tunnel type terminal 2 cable(s) rigid 2.5-2.5 mm²
tunnel type terminal 1 cable(s) flexible 0.5-0.5 mm²
tunnel type terminal 2 cable(s) flexible 2.5-2.5 mm²
tunnel type terminal 2 cable(s) flexible with ferrule 2.5-2.5 mm²

Tightening torque

1 N.m

Compatibility code

iIL

Pollution degree

Tropicalisation

Unit type of package 1

PCE

Number of units in package 1

Package 1 height

9.000 cm

Package 1 width

1.700 cm

Package 1 length

6.800 cm

Package 1 weight

38.000 g

Unit type of package 2

BB1

Number of units in package 2

Package 2 height

9.800 cm

Package 2 width

8.000 cm

Package 2 length

23.200 cm

Package 2 weight

517.000 g

Unit type of package 3

S03

Number of units in package 3

108

Package 3 height

30.000 cm

Package 3 width

30.000 cm

Package 3 length

40.000 cm

Package 3 weight

5.110 kg

Packaging made with recycled cardboard

Packaging without single use plastic

Yes

Bvb url

https://byggvarubedomningen.se/

Scip number

6763a476-30bc-4d05-a4bb-93f8d65c3771

Bvb

Accepted

Weee

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Take-back

Product contributes to saved and avoided emissions

Removable battery

N/A

Show all specifications

Documents & downloads

hide show

All
CAD Files and Packs
Declaration of Conformity
Certificates (MSDS)

ZIP

Acti9 iIL single indicator light - 3D CAD

VERSION

1.0

DATE

23 Aug 2024

REVISION

1.0

DOWNLOAD (ZIP) 948.6 KB

ZIP

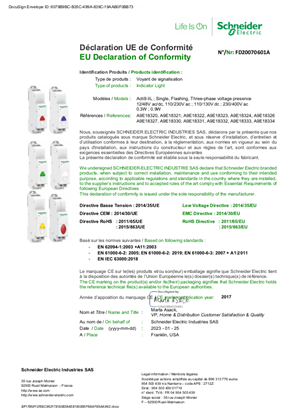

DoC_EU_FD20070601A_Acti9 ilL

VERSION

1.0

DATE

23 Feb 2024

REVISION

1.0

DOWNLOAD (ZIP) 433.7 KB

ZIP

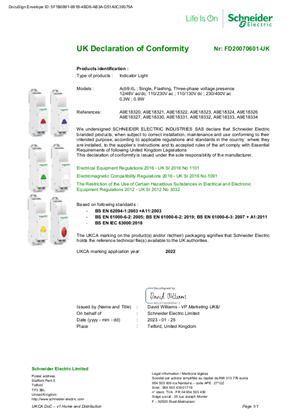

DoC_UK_FD20070601_Acti9 ilL

VERSION

1.0

DATE

23 Feb 2024

REVISION

1.0

DOWNLOAD (ZIP) 380.2 KB

ZIP

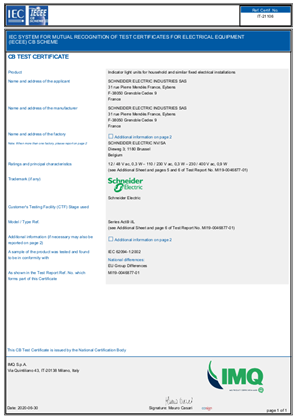

IMQ certificate
