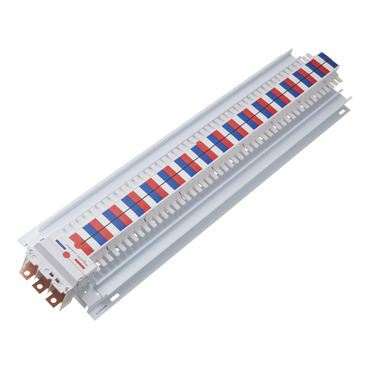

Acti9 SAU Chassis 3PH

Item Number: SAU40096183

1 PCE 0

Contact your Wholesaler for pricing

Where To Buy

Datasheet

For SAU40096183

Download

Barcode

Qty	EAN	Colour
1	3606482234765	-
		-
		-

Barcode

Qty	UoM	EAN	Colour
1		3606482234765	-

Specifications

Design

Range

Acti9

Product or component type

chassis

Device application

distribution

Physical

[in] rated current

400 A

Rated voltage

415 V 50 Hz

Number of poles

96 x 18 mm

Width

245 mm

Length

1058 mm

Depth

95 mm

Net weight

7.68 kg

Standards

AS/NZS 61439

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Others

Package 1 bare product quantity

Packaging made with recycled cardboard

Packaging without single use plastic

Incomer device

switch disconnector - 3P
MCCB - 3P

Protection device type

miniature circuit breaker (MCB) as outgoer
residual current circuit breaker with overcurrent protection (RCBO) as outgoer

Network type

Number of ways

1 way (incomer) - 3P
1 way (outgoer) - 1P or 3P

Short-circuit withstand

25 kA 0.1 s

[ui] rated insulation voltage

500 V

[uimp] rated impulse withstand voltage

6 kV

Busbar pitch

18 mm

Location of connection

top or bottom

Unit type of package 1

PCE

Number of units in package 1

Package 1 height

9.5 cm

Package 1 width

24.5 cm

Package 1 length

105.8 cm

Package 1 weight

6.7 kg

Take-back

Product contributes to saved and avoided emissions

Recycled metal content at cr level

Removable battery

N/A

Carbon footprint (kg.eq.co2 per cr, total life cycle)

35.0152508992

Global warming ; total life cycle

35 kg CO2 eq.

Minimum percentage of recycled plastic content

Show all specifications

Documents & downloads

hide show

All
CAD Files and Packs
Technical Data Catalogues
Other technical guide
Technical Drawing

ZIP

A9 SAU Chassis 3PH 400A 18mm 96P TBF - 3D - CAD

VERSION

1.0

DATE

26 Oct 2023

REVISION

1.0

DOWNLOAD (ZIP) 6.7 MB

ZIP

Acti9 Encapsulated Chassis

VERSION

1.0

DATE

09 Aug 2023

REVISION

1.0

DOWNLOAD (ZIP) 4.2 MB

ZIP

Temperature Rise Verification for Metal Distribution Boards - Technical Document

VERSION

1.0

DATE

03 Mar 2023

REVISION

1.0

DOWNLOAD (ZIP) 672 KB

ZIP

A9 SAU Chassis 3PH 400A 18mm 12P TBF - Technical Drawings

VERSION

1.0

DATE

25 Oct 2023

REVISION

1.0

DOWNLOAD (ZIP) 426.3 KB
