Datasheet

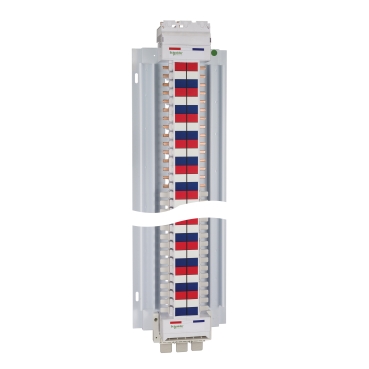

For SAU40096183DF
Close
Specifications
Design
Range
Acti9
Product or component type
chassis
Device application
distribution
Physical
[in] rated current
400 A
Rated voltage
415 V 50 Hz
Number of poles
96
Number of poles
96 x 18 mm
Width
245 mm
Length
1150 mm
Depth
95 mm
Net weight
8.16 kg
Standards
AS/NZS 61439
Reach regulation
Reference contains Substances of Very High Concern above the threshold
Eu rohs directive
Pro-active compliance (Product out of EU RoHS legal scope)
Mercury free
Yes
Rohs exemption information
Yes
China rohs regulation
Product out of China RoHS scope. Substance declaration for your information
Documents & downloads
hide showFilter items
-
All
-
Other technical guide
-
Technical Data Catalogues
ZIP
PZC-1078 SAU400 MCB Chassis - Design Verification Guidelines_E
VERSION
1.0
DATE
15 Oct 2024
REVISION
1.0
DOWNLOAD (ZIP) 173.3 KB
ZIP
Temperature Rise Verification for Metal Distribution Boards - Technical Document
VERSION
1.0
DATE
03 Mar 2023
REVISION
1.0
DOWNLOAD (ZIP) 672 KB
ZIP
Acti9 Encapsulated Chassis
VERSION
1.0
DATE
09 Aug 2023
REVISION
1.0
DOWNLOAD (ZIP) 4.2 MB
