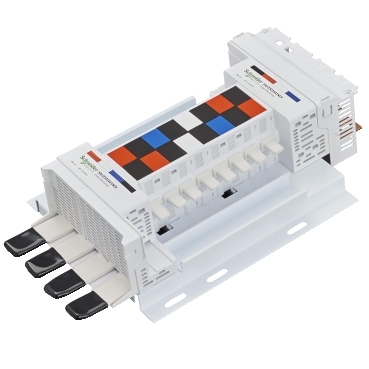

Acti9, SAU Chassis, 250A, 3*(1Ph+N), 16 poles, 18mm for iC60 MCB and RCBO, dual feed
Item Number: SAU2501641NDF
Datasheet
Close
Specifications
Design
Range
Acti9
Product or component type
chassis
Device application
distribution
Physical
Range compatibility
Acti 9 distribution board
[in] rated current
250 A
Rated voltage
415 V 50 Hz
Number of poles
16
Number of poles
16 x 18 mm
Width
215 mm
Length
146 mm
Standards
AS/NZS 61439
Reach regulation
Reference contains Substances of Very High Concern above the threshold
Eu rohs directive
Pro-active compliance (Product out of EU RoHS legal scope)
Mercury free
Yes
Rohs exemption information
Yes
China rohs regulation
Product out of China RoHS scope. Substance declaration for your information
Others
Package 1 bare product quantity
1
Network type
AC
Number of ways
1 way (incomer) - 3 x (1P+N)
Short-circuit withstand
25 kA 0.1 s
[ui] rated insulation voltage
500 V
[uimp] rated impulse withstand voltage
6 kV
Busbar pitch
18 mm
Location of connection
dual feed
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
9.5 cm
Package 1 width
24.0 cm
Package 1 length
46.5 cm
Package 1 weight
2405.0 g
Documents & downloads
hide showFilter items
-
All
-
CAD Files and Packs
-
Technical Data Catalogues
-
Other technical guide
-

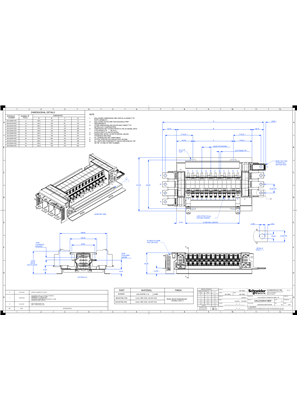

Technical Drawing
-
