Datasheet
For SEA9BN8PEV
Close
Specifications
Design
Range
Acti9
Product or component type

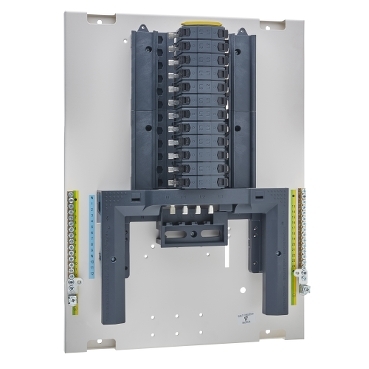

pan assembly
Device application
distribution
Physical
Range compatibility
Acti 9 Acti9 Isobar B distribution board
Provided equipment
- neutral bar
- grounding bar
- DIN rail
- mounting plate
[in] rated current
250 A
Number of poles
24 x 18 mm
Length
471 mm
Width
350 mm
Depth
105 mm
China rohs regulation
Product out of China RoHS scope. Substance declaration for your information
Environmental disclosure
ENVPEP1602010EN
Circularity profile
N/A
