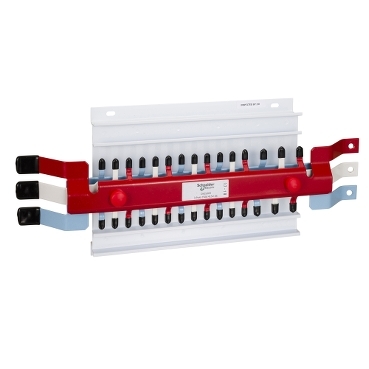

Acti9 MSC Chassis 3PH 400A, Hybrid 18/27mm for MCB & RCBO 36 poles, Dual Feed
Item Number: CH253634
Datasheet
Close
Specifications
Design
Range
Acti9
Product or component type
chassis
Device application
distribution
Physical
Range compatibility
Acti 9 Acti9 Isobar B distribution board
[in] rated current
400 A
Number of poles
6 x 27 mm|30 x 18 mm
Length
353 mm
Eu rohs directive
Not applicable, out of EU RoHS legal scope
Others
Package 1 bare product quantity
1
Device short name
MSC 18/27
[icw] rated short-time withstand current
25 kA
Number of ways
1 way (incomer) - 3P|36 ways (outgoer)
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 weight
1.000 kg
