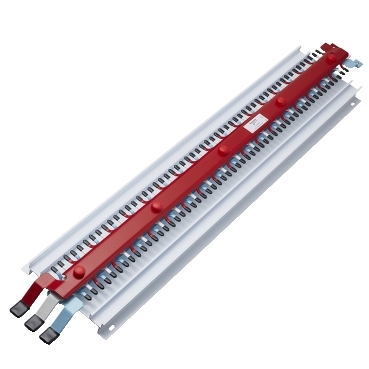

Acti9 MSC Chassis 3PH

Item Number: C32510834

1 PCE 0

Contact your Wholesaler for pricing

Where To Buy

Datasheet

For C32510834

Download

Barcode

Qty	EAN	Colour
1	3606482231122	-
		-
		-

Barcode

Qty	UoM	EAN	Colour
1		3606482231122	-

Specifications

Design

Range

Acti9

Product or component type

chassis

Device application

distribution

Physical

Range compatibility

Acti 9 Acti9 Isobar B distribution board

[in] rated current

400 A

Number of poles

108 x 18 mm

Length

974 mm

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Others

Package 1 bare product quantity

Device short name

MSC 18

[icw] rated short-time withstand current

25 kA

Number of ways

1 way (incomer) - 3P
108 (outgoer)

Busbar pitch

27 mm

Unit type of package 1

PCE

Number of units in package 1

Package 1 weight

1.000 kg

Packaging without single use plastic

Packaging made with recycled cardboard

Take-back

Product contributes to saved and avoided emissions

Recycled metal content at cr level

Removable battery

N/A

Carbon footprint (kg.eq.co2 per cr, total life cycle)

26.211723710151322

Global warming ; total life cycle

26 kg CO2 eq.

Minimum percentage of recycled plastic content

Show all specifications

Documents & downloads

hide show

All
Technical Data Catalogues
Certificates (MSDS)

ZIP

Acti9 MSC Chassis Catalogue

VERSION

1.2

DATE

10 Oct 2022

REVISION

1.2

DOWNLOAD (ZIP) 1.8 MB

ZIP

MSC400 MCB Chassis - PZC-1222 - Design Verification Guidelines to AS/NZS 61439.1:2016

VERSION

1.0

DATE

06 Oct 2022

REVISION

1.0

DOWNLOAD (ZIP) 165 KB
