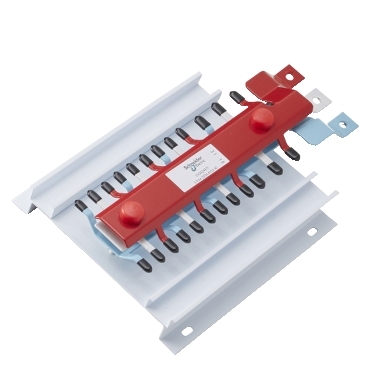

Acti9 MSC Chassis 3PH 250A, Hybrid 18/27mm for MCB & RCBO 24 poles, Top Feed
Item Number: CH25243TF
Datasheet
Close
Specifications
Design
Range
Acti9
Product or component type
chassis
Device application
distribution
Physical
Range compatibility
Acti 9 Acti9 Isobar B distribution board
[in] rated current
250 A
Number of poles
18 x 18 mm|6 x 27 mm
Length
245 mm
Width
215 mm
Eu rohs directive
Not applicable, out of EU RoHS legal scope
China rohs regulation
Product out of China RoHS scope. Substance declaration for your information
Others
Package 1 bare product quantity
1
Device short name
MSC 18/27
Short-circuit withstand
25 kA 0.1 s
[icw] rated short-time withstand current
25 kA
Number of ways
1 way (incomer) - 3P|24 ways (outgoer)
Location of connection
top
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 weight
1.000 kg
