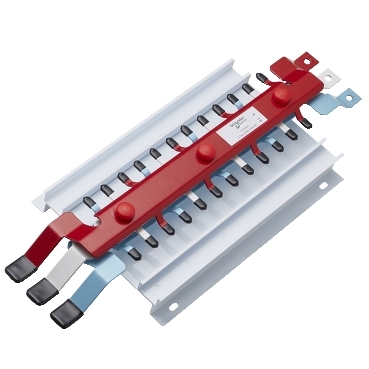

Acti9, MSC Chassis, 3PH, 250A, 27mm for C120 MCB 24 poles, Dual Feed
Item Number: C125243
Datasheet
Close
Specifications
Design
Range
Acti9
Product or component type
chassis
Device application
distribution
Physical
Range compatibility
Acti 9 Acti9 Isobar B distribution board
[in] rated current
250 A
Number of poles
24 x 27 mm
Length
326 mm
Width
215 mm
Eu rohs directive
Not applicable, out of EU RoHS legal scope
China rohs regulation
Product out of China RoHS scope. Substance declaration for your information
Circularity profile
N/A
Others
Package 1 bare product quantity
1
Device short name
MSC 27
Short-circuit withstand
25 kA 0.1 s
Number of ways
1 way (incomer) - 3P|24 ways (outgoer)
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 weight
453.592 g
