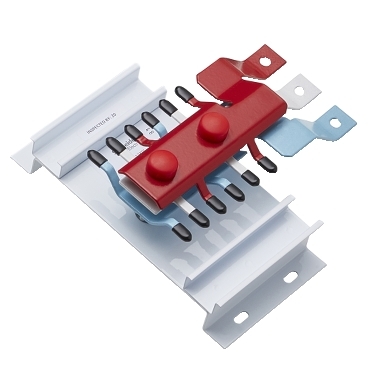

Acti9 MSC Chassis 3PH 250A, 18mm for iC60 MCB & RCBO, 12 poles, Top Feed
Item Number: C325123TF
Datasheet
Close
Specifications
Design
Range
Acti9
Product or component type
chassis
Device application
distribution
Physical
Range compatibility
Acti 9 Acti9 Isobar B distribution board
[in] rated current
250 A
Number of poles
12 x 18 mm
Length
110 mm
Width
215 mm
Eu rohs directive
Not applicable, out of EU RoHS legal scope
China rohs regulation
Product out of China RoHS scope. Substance declaration for your information
Circularity profile
N/A
Others
Package 1 bare product quantity
1
Device short name
MSC 18
Short-circuit withstand
25 kA 0.1 s
[icw] rated short-time withstand current
25 kA
Number of ways
1 way (incomer) - 3P|12 ways (outgoer)
Location of connection
top
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
10.2 cm
Package 1 width
23.3 cm
Package 1 length
31.3 cm
Package 1 weight
1112.3 g
