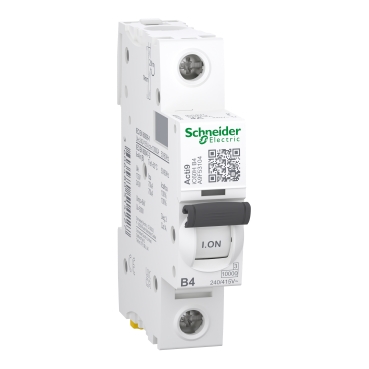

MCB, Acti9 iC60H Disbo, 1P, 4A, B curve, 10000A - Image

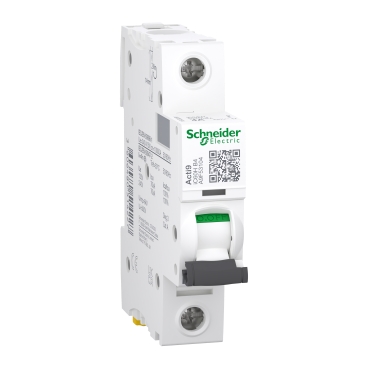

MCB, Acti9 iC60H Disbo, 1P, 4A, B curve, 10000A - Image ON

Home ProductsCircuit ProtectionActi 9Miniature circuit breaker (MCB)

Acti9, Miniature circuit breaker (MCB), iC60H Disbo, 1P, 4A, B curve, 10000A (IEC/EN 60898-1), 70kA (IEC/EN 60947-2)

Item Number: A9F53104

1 PCE 0

Where To Buy

Datasheet

Download

Product Dimensions

Width18 mm

Height85 mm

Depth78.5 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1		3606480514227	-
12		13606480514224	-

Specifications

Design

Range

Acti9

Range of product

Acti9

Product or component type

miniature circuit-breaker

Sustainable offer status

Green Premium product

Physical

[in] rated current

4 A

Control type

toggle

Local signalling

trip indicator

Mounting mode

clip-on

Mounting support

rail

Height

85 mm

Width

18 mm

Depth

78.5 mm

Net weight

0.125 kg

Mechanical durability

20000 cycles

Electrical durability

10000 cycles

Connections - terminals

single terminal (top or bottom) 1-25 mm² rigid|single terminal (top or bottom) 1-16 mm² flexible

Wire stripping length

14 mm for top or bottom connection

Standards

EN/IEC 60898-1|EN/IEC 60947-2

Ip degree of protection

IP20 conforming to IEC 60529

Relative humidity

95 % at 55 °C

Ambient air temperature for operation

-35...70 °C

Ambient air temperature for storage

-40...85 °C

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant with Exemptions

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Environmental disclosure

ENVPEP1705002EN

Circularity profile

N/A

Others

Package 1 bare product quantity

Product name

Disbo iC60

Device short name

iC60H

Poles description

Number of protected poles

Network type

AC/DC

Trip unit technology

thermal-magnetic

Curve code

Breaking capacity code

Breaking capacity

70 kA Icu at 12...60 V AC 50/60 Hz conforming to EN/IEC 60947-2|70 kA Icu at 100...133 V AC 50/60 Hz conforming to EN/IEC 60947-2|70 kA Icu at 220...240 V AC 50/60 Hz conforming to EN/IEC 60947-2|20 kA Icu at 12...60 V DC conforming to EN/IEC 60947-2|15 kA Icu at 60...72 V DC conforming to EN/IEC 60947-2|10000 A Icn at 240 V AC 50/60 Hz conforming to EN/IEC 60898-1

Utilisation category

category A conforming to EN/IEC 60947-2

Network frequency

50/60 Hz

Magnetic tripping limit

4 x In +/- 20 %

[ics] rated service breaking capacity

70 kA 100 % conforming to EN/IEC 60947-2 - 12...60 V AC 50/60 Hz|70 kA 100 % conforming to EN/IEC 60947-2 - 100...133 V AC 50/60 Hz|70 kA 100 % conforming to EN/IEC 60947-2 - 220...240 V AC 50/60 Hz|7500 A 75 % conforming to EN/IEC 60898-1 - 240 V AC 50/60 Hz|20 kA 100 % conforming to EN/IEC 60947-2 - 12...48 V DC|10 kA 100 % conforming to EN/IEC 60947-2 - 72 V DC

Limitation class

3 conforming to EN/IEC 60947-2

[ui] rated insulation voltage

500 V AC 50/60 Hz conforming to EN/IEC 60947-2

[uimp] rated impulse withstand voltage

6 kV conforming to EN/IEC 60947-2

Contact position indicator

yes

Connection pitch

18 mm between devices

9 mm pitches
