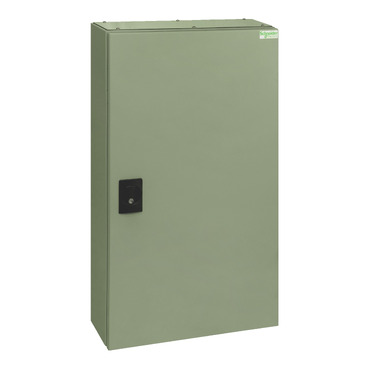

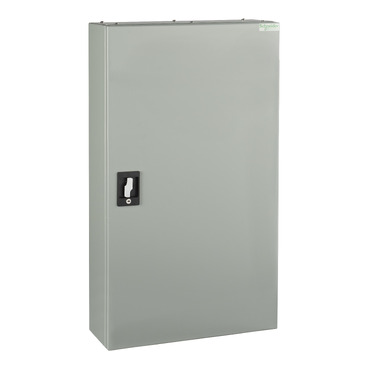

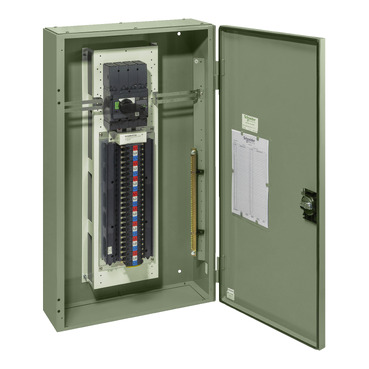

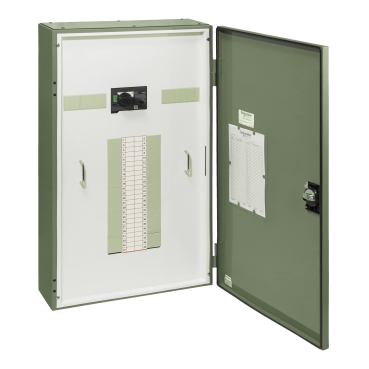

Acti9, MB Isobar standard distribution board, 48 poles, 250A main switch, 18mm, IP42, grey
Item Number: MB248DM2
Specifications
Design
Range
Acti9
Product or component type
distribution board
Device application
distribution
Physical
Provided equipment
pole filler| circuit schedule card| enclosure| door| DIN rail| removable gland plates| keys| chassis|2 earth/neutral terminal block - top and bottom 165 A| main switch
[ue] rated operational voltage
415 V
[ie] rated operational current
250 A
Number of poles
48 x 18 mm
Height
1000 mm
Width
580 mm
Depth
235 mm
Ip degree of protection
IP42
Eu rohs directive
Under investigation
Others
Package 1 bare product quantity
1
Product name
Acti9 isobar DB
Device short name
MB
Enclosure type
standard
Door type
external plain
Network frequency
50 Hz
Breaking capacity
25 kA
[ui] rated insulation voltage
500 V
[uimp] rated impulse withstand voltage
6 kV
Enclosure mounting
surface
Poles description
3P + N
Enclosure material
steel
Enclosure material
steel
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
25.0 cm
Package 1 width
60.0 cm
Package 1 length
105.0 cm
Package 1 weight
50.0 kg
