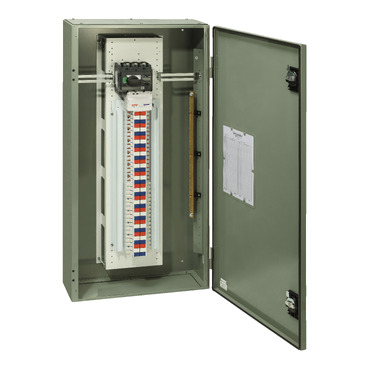

Acti9, MB Encapsulated distribution board, 72 poles, 160A main switch, 18mm, IP42, grey

Home ProductsCircuit ProtectionActi 9MB Encapsulated distribution board

Acti9, MB Encapsulated distribution board, 72 poles, 160A main switch, 18mm, IP42, grey

Item Number: MB272E31

Where To Buy

Datasheet

PDF datasheet

Download

Product Dimensions

Width icon

Width580 mm

Height icon

Height1200 mm

Depth icon

Depth235 mm

See full specifications

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range

Acti9

Product or component type

distribution board

Device application

distribution

Sustainable offer status

Green Premium product

Physical

Provided equipment

pole filler| circuit schedule card| enclosure| door| removable gland plates| keys| SAU chassis|2 earth/neutral terminal block - top and bottom 165 A| main switch| DIN rail

[ue] rated operational voltage

415 V

[ie] rated operational current

160 A

Number of poles

72 x 18 mm

Height

1200 mm

Width

580 mm

Depth

235 mm

Ip degree of protection

IP42

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Environmental disclosure

ENVPEP2304022EN

Circularity profile

N/A

Others

Package 1 bare product quantity

1

Product name

Acti9 encapsulated DB

Device short name

MB

Enclosure type

standard

Door type

external plain

Network frequency

50 Hz

Breaking capacity

25 kA

[ui] rated insulation voltage

500 V

[uimp] rated impulse withstand voltage

6 kV

Enclosure mounting

surface

Poles description

3P + N

Enclosure material

steel

Enclosure material

steel

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

25 cm

Package 1 width

60 cm

Package 1 length

121 cm

Package 1 weight

41 kg
Show all specifications
