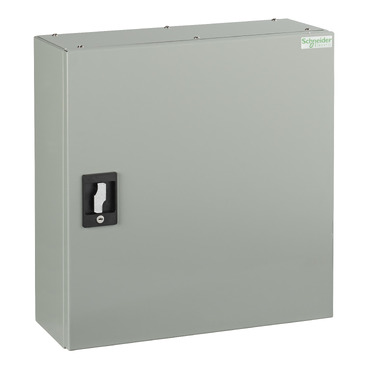

Acti9, MB Encapsulated distribution board, 24 poles, 250A no main switch, 18/27mm, IP42, grey
Item Number: MB224BH0
Specifications
Design
Range
Acti9
Product or component type
distribution board
Device application
distribution
Physical
Provided equipment
earth/neutral terminal block 165 A| pole filler| circuit schedule card| removable gland plates - top and bottom|2 keys| enclosure| door| SAU chassis| DIN rail
[ue] rated operational voltage
415 V
[ie] rated operational current
250 A
Number of poles
18 x 18 mm|6 x 27 mm
Height
600 mm
Width
580 mm
Depth
235 mm
Ip degree of protection
IP42
Others
Package 1 bare product quantity
1
Product name
Acti9 encapsulated DB
Device short name
MB
Enclosure type
standard
Door type
external plain
Network frequency
50 Hz
Breaking capacity
25 kA
[ui] rated insulation voltage
500 V
[uimp] rated impulse withstand voltage
6 kV
Enclosure mounting
surface
Poles description
3P + N
Enclosure material
steel
Enclosure material
steel
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
25 cm
Package 1 width
60 cm
Package 1 length
62.5 cm
Package 1 weight
26 kg
Take-back
No
Product contributes to saved and avoided emissions
No
Removable battery
N/A
