Specifications
Design
Range
Acti9

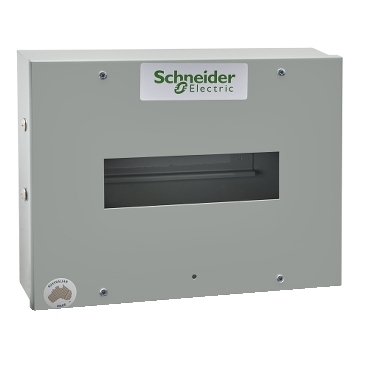

Product or component type
Load Centre
Device application
distribution
Physical
Provided equipment
DIN rail|enclosure
Number of poles
9
Height
231 mm
Width
293 mm
Depth
66 mm
Ip degree of protection
IP40
Eu rohs directive
Not applicable, out of EU RoHS legal scope
Material
Material
steel
Others
Package 1 bare product quantity
1
Number of horizontal rows
1
Number of 18 mm modules per row
9
Type of rail
DIN
Mounting plate description
without mounting plate
Enclosure mounting
surface
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
8.7 cm
Package 1 width
24.0 cm
Package 1 length
36.5 cm
Package 1 weight
2.411 kg
Take-back
No
Product contributes to saved and avoided emissions
No
Removable battery
N/A
