Acti9 IH mechanical time switch

Item Number: 15336

1 PCE 0

Retail

$237

RRP (Inc. GST)

Where To Buy

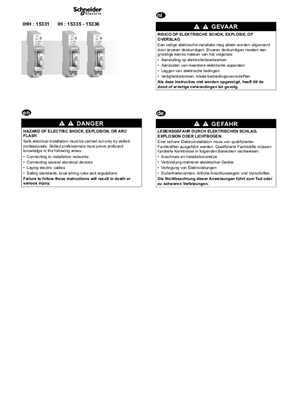

Datasheet

For 15336

Download

Product Dimensions

Width18 mm

Height90 mm

Depth66 mm

See full specifications

Barcode

Qty	EAN	Colour
1	3303430153368	-
10	23303430153362	-
		-

Barcode

Qty	UoM	EAN	Colour
1		3303430153368	-
10		23303430153362	-

Specifications

Design

Range of product

Acti9

Range

Acti9

Product or component type

mechanical time switch

Device application

building

Colour tint

white (RAL 9003)

Market segment

small commercial
residential

Warranty

18 months

Physical

Number of channels

Function available

manual time changeover

Load type

parallel-corrected fluorescent tube 5 x 58 W 4.7 µF
parallel-corrected fluorescent tube 7 x 40 W 7 µF
parallel-corrected fluorescent tube 2 x 100 W 18 µF
230 V AC halogen lamp 1000 W
230 V AC incandescent lamp 1000 W
fluocompact lamp 700 VA
compact fluorescent lamp 150 W
LED lamp < 2 W 30 W
LED lamp > 2 W 300 W

Minimum interval duration

15 min

Type of setting

manual time changeover

Power consumption in w

0.5 W

[ue] rated operational voltage

230...240 V AC at 50...60 Hz

Backup time

150 h time and program saving

Mounting support

DIN rail

Connections - terminals

screw terminals

Width

18 mm

Height

90 mm

Depth

66 mm

Net weight

0.101 kg

Ambient air temperature for operation

-10...50 °C

Ip degree of protection

terminals: IP20 B

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant with Exemptions

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Environmental disclosure

ENVPEP1307077EN

Circularity profile

ENVEOLI1307077EN

California proposition 65

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Others

Certification number

NCC T04421 - NET CONNECTION

Life cycle assessment data

If one of the deliverables is not relevant please give the reason

Brand labelled

Substance regulation data deliverable

Yes

Packaging made with recycled cardboard

Packaging without single use plastic

Package 1 bare product quantity

Product name

Acti9 IH

Device short name

Cycle duration

24 h

Maximum number of switchings

48 on - 48 off

Measurement accuracy

+/- 1 s/day 20-20 °C

Maximum switching current

16 A - 250 V AC pf = 1
4 A - 250 V AC pf = 0.6

Battery life

10 year(s)

9 mm pitches

Function

none

Absence for holidays

Time changeover

manual

Updated by

none

Compatibility code

Unit type of package 1

PCE

Number of units in package 1

Package 1 height

2.400 cm

Package 1 width

6.800 cm

Package 1 length

10.000 cm

Package 1 weight

87.000 g

Unit type of package 2

S03

Number of units in package 2

100

Package 2 height

30.000 cm

Package 2 width

30.000 cm

Package 2 length

40.000 cm

Package 2 weight

9.350 kg

Unit type of package 3

P12

Number of units in package 3

1600

Package 3 height

75.000 cm

Package 3 width

80.000 cm

Package 3 length

120.000 cm

Package 3 weight

146.192 kg

Green premium status for reporting

Green Premium product

Weee

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

VERSION

1.0

DATE

03 Nov 2023

REVISION

1.0
