Specifications
Design
Range
Product or component type
Market segment
- buildings small building cost management: billing: main incomer
- buildings small building cost management: billing: sub feeder
- buildings small building cost management: billing: panelboard
- buildings medium building cost management: billing: main incomer
- buildings medium building cost management: billing: sub feeder
- buildings medium building cost management: billing: panelboard
- buildings large building cost management: billing: main incomer
- buildings large building cost management: billing: sub feeder
- buildings large building cost management: billing: panelboard
- buildings multi-site cost management: billing: main incomer
- buildings multi-site cost management: billing: sub feeder
- buildings multi-site cost management: billing: panelboard
- data center cost management: billing
- healthcare cost management: billing
- industry cost management: billing
- buildings small building cost management: cost allocation: main incomer
- buildings small building cost management: cost allocation: sub feeder
- buildings small building cost management: cost allocation: panelboard
- buildings medium building cost management: cost allocation: main incomer
- buildings medium building cost management: cost allocation: sub feeder
- buildings medium building cost management: cost allocation: panelboard
- buildings large building cost management: cost allocation: main incomer
- buildings large building cost management: cost allocation: sub feeder
- buildings large building cost management: cost allocation: panelboard
- buildings multi-site cost management: cost allocation: main incomer
- buildings multi-site cost management: cost allocation: sub feeder
- buildings multi-site cost management: cost allocation: panelboard
- data center cost management: cost allocation
- healthcare cost management: cost allocation
- industry cost management: cost allocation
Device application
- multi-tariff
- sub billing
Market segment
- small commercial
- residential
Warranty
Physical
[in] rated current
- 1 A
- 5 A
Rated voltage
- 100...277 V
- 173...480 V
Communication port protocol
Local signalling
- green indicator light: power ON
- yellow flashing LED: accuracy checking
Mounting mode
Mounting support
Connections - terminals
- current circuit: screw terminals 6-6 mm² cable(s)
- voltage circuit: screw terminals 2.5-2.5 mm² cable(s)
Standards
- BS EN 61557-12:2021
- IEC 61557-12:2021
- EN 61557-12:2021
- BS EN 61326-1
- IEC 61326-1
- EN 61326-1
- BS EN 62052-11:2020
- IEC 62052-11:2020
- EN 62052-11:2020
- BS EN 62053-21
- IEC 62053-21
- EN 62053-21
- BS EN 62052-22
- IEC 62053-22:2020
- EN 62052-22
- BS EN 62052-23
- IEC 62053-23:2020
- EN 62052-23
- BS EN 62052-31:2015
- IEC 62052-31:2015
- EN 62052-31:2015
- BS EN 61010-1:2010
- EN 61010-1:2010
- IEC 61010-1:2010
- UL 61010-1:2010
- BS EN 61010-2-30
- IEC 61010-2-30
- EN 61010-2-30
- UL 61010-2-30
- BS EN 50470-3
- EN 50470-3
- BS EN 50470-1
- EN 50470-1
- ANSI C12.20
Product certifications
- CE conforming to IEC 61010-1 (safety)
- CE conforming to EN 61557-12 (power monitor)
- CE conforming to EN/IEC 61326-1 (EMC)
- UKCA conforming to BS EN 61010-1 (safety)
- UKCA conforming to BS EN 61557-12 (power monitor)
- UKCA conforming to BS EN 61326-1 (EMC)
- cULus conforming to UL 61010-1 (safety)
- cULus conforming to EN 61010-1 (safety)
- EAC conforming to EN 50470-3 (sub-meter)
- RCM conforming to EN 62052 (sub-meter)
- KZ conforming to EN 50470-3 (sub-meter)
- METAS conforming to EN 50470-1 (sub-meter)
- MID conforming to EN 50470-3 (sub-meter)
- MID conforming to EN 50470-1 (sub-meter)
- NMI conforming to NMI M 6-1
Ip degree of protection
- IP40 front panel: conforming to IEC 60529
- IP20 body: conforming to IEC 60529
Relative humidity
Ambient air temperature for operation
Ambient air temperature for storage
Width
Height
Depth
Reach regulation
Eu rohs directive
Mercury free
Rohs exemption information
China rohs regulation
Environmental disclosure
Circularity profile
California proposition 65
Documents & downloads
hide show-
All
-
CAD Files and Packs
-
Product Brochures
-
Technical Data Catalogues
-
Other technical guide
-

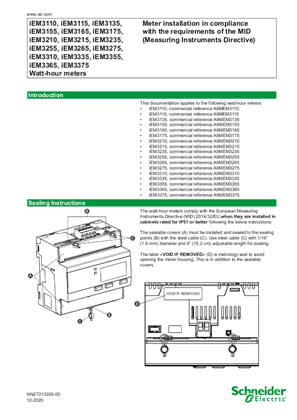

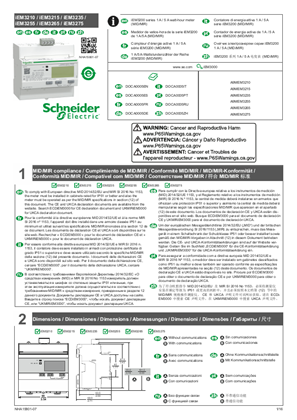

Installation Instruction
-
End of Life Manual
-
Environmental Disclosure
-
Operating Manuals
-
Technical illustration
-

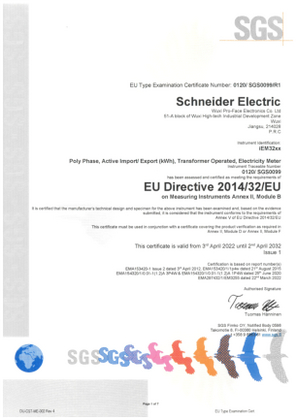

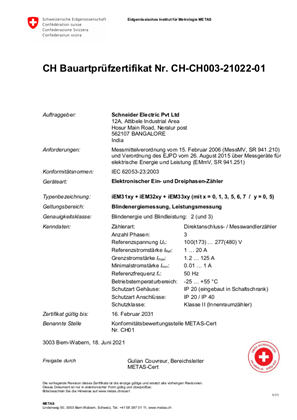

Certificates (MSDS)
-

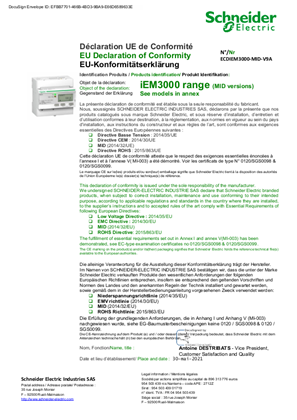

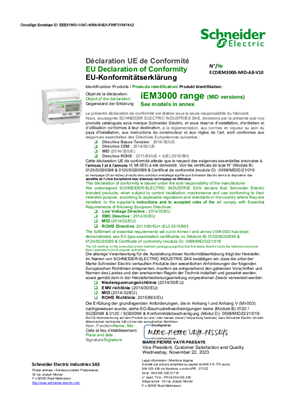

Declaration of Conformity
