Acti9, IC60H2 - earth leakage circuit breaker, 2P, C curve, 10 A, 30 mA, 110 V

Home ProductsCircuit ProtectionActi 9IC60H2 - earth leakage circuit breaker

Acti9, IC60H2 - earth leakage circuit breaker, 2P, C curve, 10 A, 30 mA, 110 V

Item Number: A9D19210

Where To Buy

Datasheet

PDF datasheet

Download

Product Dimensions

Width icon

Width36 mm

Height icon

Height110 mm

Depth icon

Depth75.5 mm

See full specifications

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range

Acti9

Range of product

Acti9

Product or component type

residual current breaker with overcurrent protection (RCBO)

Sustainable offer status

Green Premium product

Physical

[in] rated current

10 A at 50 °C

[ue] rated operational voltage

110 V AC 50/60 Hz

Control type

toggle

Local signalling

ON/OFF indication

Mounting mode

clip-on

Mounting support

DIN rail

Height

110 mm

Width

36 mm

Depth

75.5 mm

Net weight

332 g

Mechanical durability

20000 cycles

Electrical durability

5000 cycles

Connections - terminals

screw clamp terminal (top) 1-25 mm² rigid without cable end|screw clamp terminal (top) 1-16 mm² flexible|screw clamp terminal (bottom) 1-16 mm² rigid without cable end|screw clamp terminal (bottom) 1-10 mm² flexible

Wire stripping length

power circuit: 13 mm for bottom connection|power circuit: 14 mm for top connection

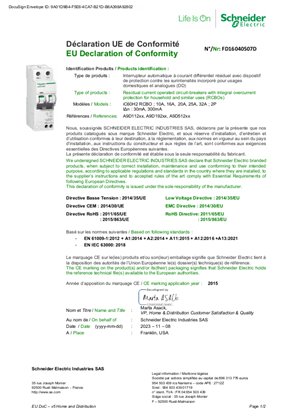

Standards

IEC 61009-1|IEC 61009-2-2|AS/NZS 61009.1

Ip degree of protection

IP20

Relative humidity

95 % at 55 °C

Ambient air temperature for operation

-15...60 °C

Ambient air temperature for storage

-40...85 °C

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant with Exemptions

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Environmental disclosure

ENVPEP121008EN

Circularity profile

N/A

Others

Package 1 bare product quantity

1

Circuit breaker application

distribution

Product name

Acti9 iC60 RCBO

Device short name

iC60H2 RCBO

Poles description

2P

Earthing system

TN|TT|IT

Curve code

C

Earth-leakage sensitivity

30 mA

Breaking capacity

10000 A Icn at 110 V AC 50/60 Hz

Neutral position

left

Number of protected poles

1

Device location in system

outgoer

Network frequency

50 Hz

Network type

AC

Trip unit technology

thermal-magnetic

Breaking capacity code

H2

Residual current tripping technology

voltage dependent

Earth-leakage protection time delay

instantaneous

Earth-leakage protection class

type A

[icw] rated short-time withstand current

Icw: 250 A during 8/20 µs impulse withstand

[ics] rated service breaking capacity

7500 A at 110 V AC 50/60 Hz

Limitation class

3

[ui] rated insulation voltage

400 V AC 50/60 Hz

[uimp] rated impulse withstand voltage

4 kV

Surge current

250 A

Suitability for isolation

yes

Contact position indicator

yes

Comb busbar and distribution block compatibility

NO

9 mm pitches

4

Provision for padlocking

padlockable with padlock Ø 4 mm

Locking options description

ON/OFF locking facilities

Tightening torque

power circuit: 3.5...3.5 N.m top|power circuit: 2 N.m bottom

Earth-leakage protection

integrated

Tropicalisation

2

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

7.5 cm

Package 1 width

9.5 cm

Package 1 length

1.8 cm

Package 1 weight

302.0 g

Unit type of package 2

S02

Number of units in package 2

27

Package 2 height

15.0 cm

Package 2 width

30.0 cm

Package 2 length

40.0 cm

Package 2 weight

8.594 kg

Unit type of package 3

P12

Number of units in package 3

864

Package 3 height

70.0 cm

Package 3 width

120.0 cm

Package 3 length

80.0 cm

Package 3 weight

272.928 kg

Weee

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Halogen content performance

Halogen free plastic parts product
