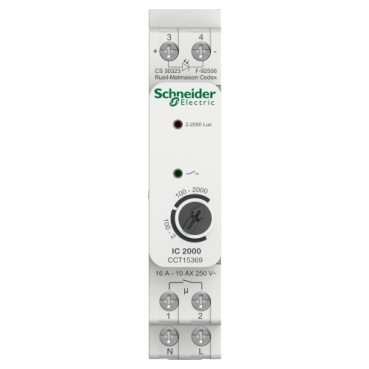

Acti9, IC2000 outdoor twilight switch, 2 - 2000 lux

Home ProductsCircuit ProtectionActi 9IC2000 outdoor twilight switch

Acti9, IC2000 outdoor twilight switch, 2 - 2000 lux

Item Number: CCT15369

Where To Buy

Datasheet

PDF datasheet

Download

Product Dimensions

Width icon

Width18 mm

Height icon

Height85.5 mm

Depth icon

Depth67 mm

See full specifications

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range

Acti9

Product or component type

twilight switch

Device application

building

Physical

Provided equipment

twilight sensor outdoor

Load type

incandescent lamp: 2600 W| halogen lamp: 2600 W| non-corrected fluorescent tube: 2300 VA| serial-compensated fluorescent tube: 2300 VA| parallel compensated fluorescent lamp: 730 VA (80 µF)| compact fluorescent lamp: 170 W|< 2 W LED lamp: 30 W|> 2 W LED lamp: 200 W

Number of channels

1

[ue] rated operational voltage

230 V AC +10 % -15 % at 50/60 Hz

Electrical insulation class

class II

Light intensity adjustment

2...2000 lux

Connections - terminals

1 x 2.5-2.5 mm² screw terminals solid or flexible with sleeve|2 x 0.5-2.5 mm² screw terminals solid or flexible

Mounting support

TH35 DIN rail conforming to EN 60715

Height

85.5 mm

Width

18 mm

Depth

67 mm

Net weight

111 g

Marking

CE

Control type

by brightness detection

Ambient air temperature for operation

-30...55 °C

Ambient air temperature for storage

-30...70 °C

Relative humidity

90 %, non-condensing

Ip degree of protection

IP20|IP55 (sensor)

Standards

EN 60669-2-1

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant with Exemptions

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

X

Environmental disclosure

ENVPEP1901001EN

Circularity profile

ENVEOLI1901001EN

Others

Package 1 bare product quantity

1

Product name

Acti9 IC

Device short name

IC2000

Maximum power consumption in w

0.5 W stand by

Maximum switching current

10 A - 250 V AC pf = 0.6 |16 A - 250 V AC pf = 1

Minimum switching current

10 mA 230 V AC|100 mA 24 V AC/DC

Output type

dry contact

Accuracy

+/- 0.25 s/day 25 °C

Contacts type and composition

1 NO

Time delay

20 s on|80 s off

Total power losses

0.3 W

Overvoltage category

class 3

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

6.5 cm

Package 1 width

8.0 cm

Package 1 length

10.5 cm

Package 1 weight

161.0 g

Unit type of package 2

S03

Number of units in package 2

40

Package 2 height

30 cm

Package 2 width

30 cm

Package 2 length

40 cm

Package 2 weight

6.89 kg

Package 3 height

80 cm

Scip number

7267ef83-877b-4767-8e69-8d32bf47494a

Weee

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A
Show all specifications

Frequently Asked Questions

hide show

Can a third party photo cell be used with the light sensitive switches?

No, the light sensitive switches, such as the IC100, IC2000, IC2000P+ and IC100k, are designed to be used with the photo cells supplied with them.
