Acti9 C120, Earth leakage add-on block, 4P, 300 mA, class A

Home ProductsCircuit ProtectionActi 9Earth leakage add-on block

Acti9 C120, Earth leakage add-on block, 4P, 300 mA, class A

Item Number: A9N18579

Where To Buy

Datasheet

PDF datasheet

Download

Product Dimensions

Width icon

Width198 mm

Height icon

Height95 mm

Depth icon

Depth73 mm

See full specifications

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

C120

Product or component type

add-on residual current devices

Product compatibility

single terminal

Market segment

residential|small commercial

Sustainable offer status

Green Premium product

Warranty

18 months

Physical

[in] rated current

125 A

[ue] rated operational voltage

230...415 V AC 50/60 Hz

Mounting mode

clip-on

Mounting support

35 mm symmetrical DIN rail

Height

95 mm

Width

198 mm

Depth

73 mm

Net weight

0.58 kg

Mechanical durability

20000 cycles

Connections - terminals

tunnel type terminals 1-35 mm² flexible|tunnel type terminals 1-50 mm² rigid

Wire stripping length

15 mm

Standards

EN 61009|IEC/EN 61009-2-1

Ip degree of protection

IP20

Ambient air temperature for operation

-25...60 °C

Ambient air temperature for storage

-40...60 °C

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant with Exemptions

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Environmental disclosure

ENVPEP091101EN

Circularity profile

ENVEOLI091101EN

Others

Package 1 bare product quantity

1

Package 2 bare product quantity

8

Device short name

Vigi C120

Poles description

4P

Network type

AC

Earth-leakage sensitivity

300 mA

Earth-leakage protection time delay

instantaneous

Earth-leakage protection class

type A

Device location in system

outgoer

Network frequency

50/60 Hz

Residual current tripping technology

voltage independent

[ui] rated insulation voltage

500 V AC 50/60 Hz conforming to IEC 60947-1

[uimp] rated impulse withstand voltage

6 kV conforming to IEC 60947-2

Electrical connection to mcb

by screws

9 mm pitches

10

Tightening torque

3.5...3.5 N.m

Compatibility code

Vigi C120

Pollution degree

3 conforming to IEC 60947-2

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

9.000 cm

Package 1 width

13.500 cm

Package 1 length

25.000 cm

Package 1 weight

657.000 g

Unit type of package 2

S03

Number of units in package 2

8

Package 2 height

30.000 cm

Package 2 width

30.000 cm

Package 2 length

40.000 cm

Package 2 weight

5.739 kg

Weee

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Show all specifications

Documents & downloads

hide show
Filter items

  • All

  • CAD Files and Packs

  • End of Life Manual

  • Environmental Disclosure

  • Installation Instruction

  • Operating Manuals

  • Declaration of Conformity

  • Certificates (MSDS)

Vigi C120 125A 4P 30mA...1000mA; Adaptable residual current device - 3D CAD
ZIP

Vigi C120 125A 4P 30mA...1000mA; Adaptable residual current device - 3D CAD

VERSION

1.0

DATE

23 Aug 2024

REVISION

1.0

DOWNLOAD (ZIP) 1.5 MB

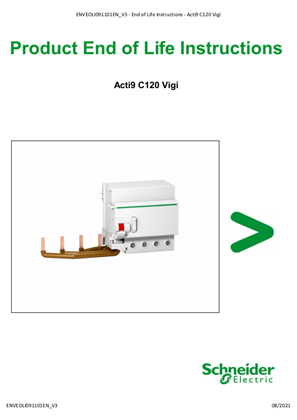

Acti9 C120 Vigi - Product End of life Instructions
ZIP

Acti9 C120 Vigi - Product End of life Instructions

VERSION

1.0

DATE

07 Aug 2024

REVISION

1.0

DOWNLOAD (ZIP) 275.3 KB

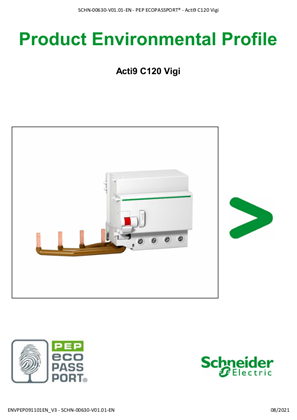

Vigi for C120 - Product Environmental Profile
ZIP

Vigi for C120 - Product Environmental Profile

VERSION

3.0

DATE

17 Jul 2024

REVISION

3.0

DOWNLOAD (ZIP) 397.9 KB

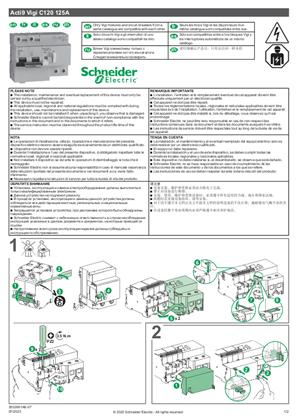

Vigi C120 125A - Instruction Sheet
ZIP

Vigi C120 125A - Instruction Sheet

VERSION

2.0

DATE

11 Jun 2024

REVISION

2.0

DOWNLOAD (ZIP) 1.2 MB
Routine operating checks of Residual Current Devices - User Guide
ZIP

Routine operating checks of Residual Current Devices - User Guide

VERSION

1.0

DATE

13 Jun 2024

REVISION

1.0

DOWNLOAD (ZIP) 1.3 MB

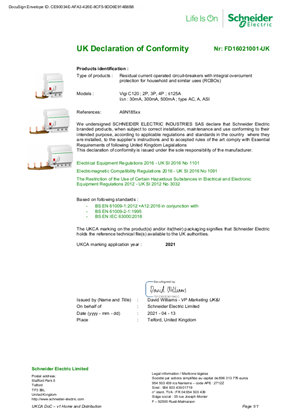

UKCA decl - FD16021001-UK - RCD Vigi C120
ZIP

UKCA decl - FD16021001-UK - RCD Vigi C120

VERSION

1.0

DATE

20 May 2024

REVISION

1.0

DOWNLOAD (ZIP) 371.4 KB

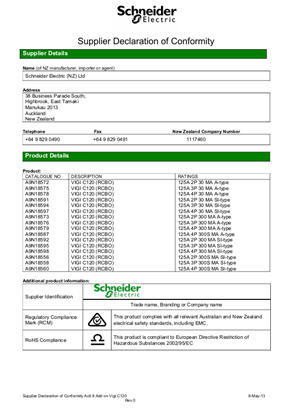

Acti 9 iDPN Vigi, C120, Supplier Declaration of Conformity
ZIP

Acti 9 iDPN Vigi, C120, Supplier Declaration of Conformity

VERSION

1.0

DATE

07 Oct 2022

REVISION

1.0

DOWNLOAD (ZIP) 74.8 KB

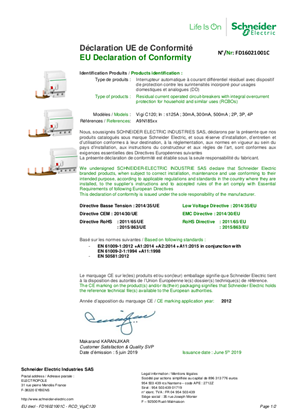

EU Declaration of Conformity Schneider Electric
ZIP

EU Declaration of Conformity Schneider Electric

VERSION

3.0

DATE

06 Oct 2022

REVISION

3.0

DOWNLOAD (ZIP) 160.1 KB
Certificate C120H according to EN 60898-1
ZIP

Certificate C120H according to EN 60898-1

VERSION

1.0

DATE

16 Apr 2024

REVISION

1.0

DOWNLOAD (ZIP) 651.7 KB

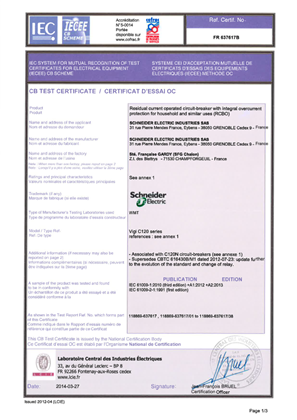

Certificate C120N according to IEC 60898-1
ZIP

Certificate C120N according to IEC 60898-1

VERSION

1.0

DATE

16 Apr 2024

REVISION

1.0

DOWNLOAD (ZIP) 442.4 KB

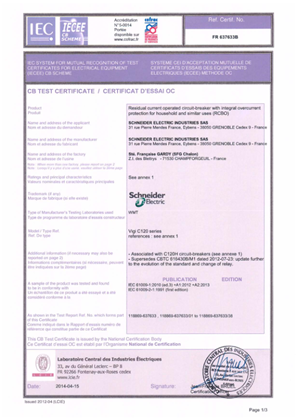

Certificate C120H according to IEC 60898-1
