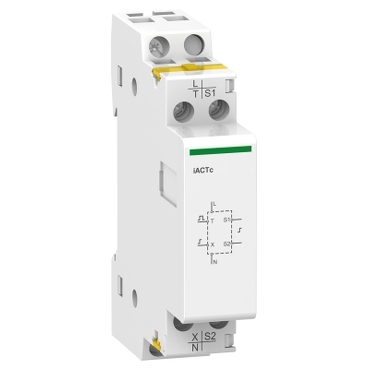

Acti9, Double control input auxiliary, iACTc 24…48 V AC

Home ProductsCircuit ProtectionActi 9Double control input auxiliary

Acti9, Double control input auxiliary, iACTc 24…48 V AC

Item Number: A9C18309

Where To Buy

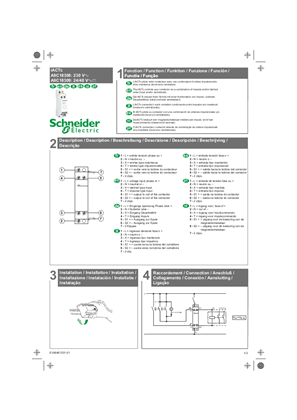

Datasheet

PDF datasheet

Download

Product Dimensions

Width icon

Width18 mm

Height icon

Height81 mm

Depth icon

Depth60 mm

See full specifications

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

iCT

Range

Acti9

Product or component type

double control input auxiliary

Market segment

small commercial|residential

Warranty

18 months

Physical

Mounting mode

fixed, on the left of CT

Mounting support

DIN rail

Height

81 mm

Width

18 mm

Depth

60 mm

Standards

IEC/EN 61095

Connections - terminals

control circuit: tunnel type terminals 2 cable(s) 2.5-2.5 mm² flexible|control circuit: tunnel type terminals 2 cable(s) 1.5-1.5 mm² rigid|control circuit: tunnel type terminals 1 cable(s) 1.5-2.5 mm² rigid|control circuit: tunnel type terminals 1 cable(s) 1.5-2.5 mm² flexible with ferrule|control circuit: yellow clips

Wire stripping length

9 mm

Range compatibility

Acti9 Acti9 iCT

Ip degree of protection

IP20 conforming to IEC 60529

Ambient air temperature for operation

-5...50 °C

Ambient air temperature for storage

-40...70 °C

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant with Exemptions

Mercury free

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Rohs exemption information

Yes

Others

Package 1 bare product quantity

1

Package 2 bare product quantity

24

Device short name

iACTc

[uc] control circuit voltage

24...48 V AC 50/60 Hz impulse 250 ms|24...48 V AC 50/60 Hz maintained

[us] rated supply voltage

24...48 V AC at 50/60 Hz

Maximum output current

0.2 A holding|2 A inrush

Hold-in power consumption in va

3 VA

9 mm pitches

2

Overvoltage category

III

[uimp] rated impulse withstand voltage

4 kV

[ui] rated insulation voltage

440 V

Tightening torque

0.8...0.8 N.m

Compatibility code

iACTc

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

2.500 cm

Package 1 width

7.900 cm

Package 1 length

9.000 cm

Package 1 weight

88.000 g

Unit type of package 2

S01

Number of units in package 2

24

Package 2 height

15.000 cm

Package 2 width

15.000 cm

Package 2 length

40.000 cm

Package 2 weight

2.295 kg

Weee

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Halogen content performance

Halogen free plastic parts product
