Acti9, Contactor, ICT 100A 4NO 220...240V 50Hz

Item Number: A9C20884

Where To Buy

Datasheet

PDF datasheet

Download

Product Dimensions

Width icon

Width108 mm

Height icon

Height85 mm

Depth icon

Depth60 mm

See full specifications

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

iCT

Range

Acti9

Product or component type

contactor

Device application

heating-low inductive load

Product compatibility

iACTp|iACTs|iATEt|iACTc

Market segment

small commercial|residential

Sustainable offer status

Green Premium product

Warranty

18 months

Physical

[ie] rated operational current

100 A AC-7A

Control type

remote control

[ue] rated operational voltage

400 V AC 50 Hz

Control signal type

maintained

Local signalling

action indicator

Mounting mode

clip-on

Mounting support

35 mm symmetrical DIN rail

Height

85 mm

Width

108 mm

Depth

60 mm

Electrical durability

30000 cycles EN 61095 400 V 16 A AC 50 Hz AC-7A|30000 cycles UTE C 61-481 400 V 6 A AC 50 Hz AC-7A|30000 cycles IEC 61095 400 V AC 50 Hz AC-7A

Connections - terminals

control circuit: tunnel type terminals2 cable(s) 1.5-1.5 mm² rigid|control circuit: tunnel type terminals1 cable(s) 1.5-2.5 mm² rigid|control circuit: tunnel type terminals2 cable(s) 1.5-2.5 mm² flexible|power circuit: tunnel type terminals1 cable(s) 6-35 mm² solid or flexible

Standards

EN 61095|IEC 61095|UTE C 61-481

Ip degree of protection

IP20 conforming to IEC 60529|IP40 (modular enclosure) conforming to IEC 60529

Relative humidity

95 % at 55 °C

Ambient air temperature for operation

-5...60 °C

Ambient air temperature for storage

-40...70 °C

Reach regulation

Free of Substances of Very High Concern above the threshold

Reach free of svhc

Yes

Eu rohs directive

Compliant

Toxic heavy metal free

Yes

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

 Pro-active China RoHS declaration (out of China RoHS legal scope)

Environmental disclosure

ENVPEP110308EN

Circularity profile

N/A

Others

Package 1 bare product quantity

1

Package 2 bare product quantity

2

Package 3 bare product quantity

16

Product name

Acti9 iCT

Device short name

iCT

Poles description

4P

Pole contact composition

4 NO

Network type

AC

Utilisation category

AC-1 conforming to EN 60947-4-1|AC-7A conforming to EN 61095|AC-7A conforming to IEC 61095|AC-7A conforming to UTE C 61-481|AC-1 conforming to IEC 60947-4-1

[uc] control circuit voltage

220...240 V AC 50 Hz

Network frequency

50 Hz

Maximum power

AC-7A: 4.2 W at 400 V AC 50 Hz

[ui] rated insulation voltage

500 V AC 50 Hz

[uimp] rated impulse withstand voltage

4 kV

Switching frequency

100 switching operations/day

Hold-in power consumption in va

13 VA

Inrush power in va

106 VA

9 mm pitches

12

Tightening torque

power circuit: 3.5...3.5 N.m|control circuit: 0.8...0.8 N.m A1 / A2

Compatibility code

iCT

Noise level

30 dB

Heat dissipation

4.2...4.2 W at 50/60 Hz

Pollution degree

2

Tropicalisation

2 conforming to EN 60947-4-1

Operating altitude

2000 m

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

6.800 cm

Package 1 width

8.800 cm

Package 1 length

10.900 cm

Package 1 weight

621.000 g

Unit type of package 2

BB1

Number of units in package 2

2

Package 2 height

8.300 cm

Package 2 width

9.800 cm

Package 2 length

23.200 cm

Package 2 weight

1.304 kg

Unit type of package 3

S03

Number of units in package 3

16

Package 3 height

30.000 cm

Package 3 width

30.000 cm

Package 3 length

40.000 cm

Package 3 weight

10.919 kg

Weee

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Show all specifications

Documents & downloads

hide show
Filter items

  • All

  • CAD Files and Packs

  • Environmental Disclosure

  • Certificates (MSDS)

  • Declaration of Conformity

Acti9 iCT 100A contactor 4NO - 3D CAD
ZIP

Acti9 iCT 100A contactor 4NO - 3D CAD

VERSION

1.0

DATE

23 Aug 2024

REVISION

1.0

DOWNLOAD (ZIP) 964.8 KB
Acti9 iCT - Contactors - Product Environmental Profile
ZIP

Acti9 iCT - Contactors - Product Environmental Profile

VERSION

3.0

DATE

14 Jun 2023

REVISION

3.0

DOWNLOAD (ZIP) 320.4 KB

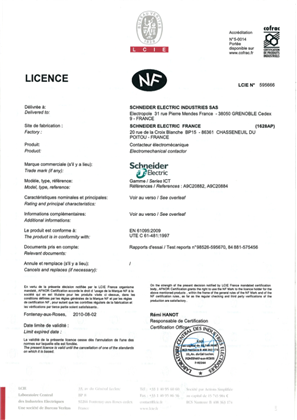

NF certificate LCIE
