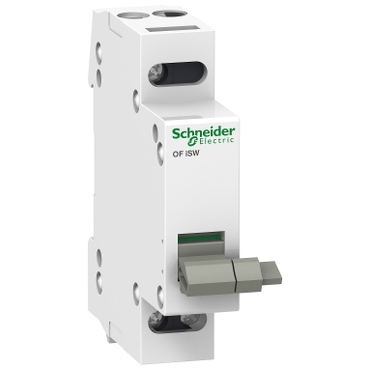

Acti9 Contact OC
Item Number: A9A15096
This Acti9 iOF is a contact auxiliary for iSW. it has a changeover contact, rated current is 3A at 415VAC and 6A at 250VAC. Mounting is performed on the left of Acti9 iSW switches with operational current less than or equal to 32A. The width in 9mm pitches is 2. The degree of protection is IP20 and IP40 in an enclosure. It is DIN rail mountable. The dimensions are (W) 18mm x (H) 77mm x (D) 75mm.
Specifications
Design
Range of product
Range
Product or component type
Market segment
Warranty
Physical
[ie] rated operational current
- 3 A at 415 V AC
- 6 A at 250 V AC
Mounting mode
Mounting support
Height
Width
Depth
Range compatibility
Reach regulation
Eu rohs directive
Toxic heavy metal free
Mercury free
Rohs exemption information
China rohs regulation
Environmental disclosure
Circularity profile
Documents & downloads
hide show-
All
-
CAD Files and Packs
-
Environmental Disclosure
-
End of Life Manual
Acti9 OC contact for iSW - 3D CAD
VERSION
1.0
DATE
04 Oct 2023
REVISION
1.0

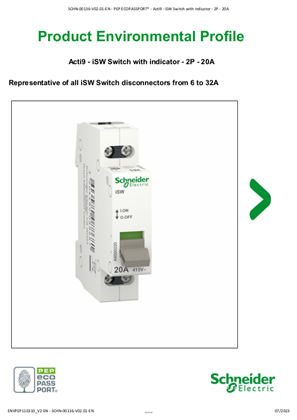

Acti9 - iSW Switch with indicator - 2P - 20A - Product Environmental Profile
VERSION
2.1
DATE
08 Jan 2025
REVISION
2.1

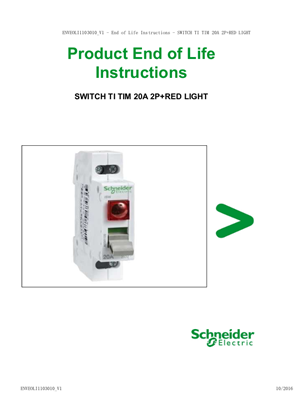

SWITCH TI TIM 20A 2P+RED LIGHT - Product End of Life Instructions
