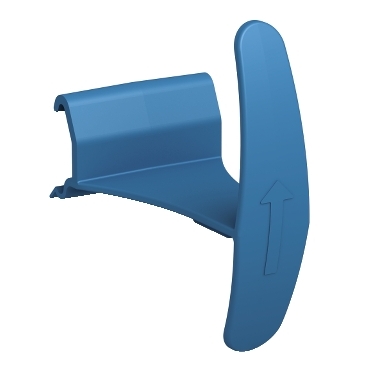

OptiLine 70, cable retainer, blue

Home ProductsCable ManagementOptiLinecable retainer

OptiLine 70, cable retainer, blue

Item Number: ISM11901

Where To Buy

Datasheet

PDF datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

OptiLine 50|OptiLine 70

Product or component type

cable retainer

Colour tint

blue (NCS S 3050-R90B)

Market segment

small commercial|residential

Warranty

18 months

Physical

Quantity per set

set of 5

Fixing mode

snap-fitted

Length

25 mm

Height

42 mm

Width

48 mm

Standards

73/23/EEC|93/68/EEC|EN 50085-1:2005|EN 50085-2-1:2002|NF C 68-102

Ambient air temperature for operation

-25...60 °C

Ip degree of protection

IP40

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Toxic heavy metal free

Yes

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

 Pro-active China RoHS declaration (out of China RoHS legal scope)

Environmental disclosure

ENVPEP060309EN

Circularity profile

N/A

Material

Material

PA (polyamide)

Others

Package 1 bare product quantity

1

Cabling installation system

trunking

Trunking material

aluminium|plastic

Trunking dimension

120 x 55 mm|185 x 55 mm|155 x 55 mm|95 x 55 mm|80 x 55 mm

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

4.8 cm

Package 1 width

2.5 cm

Package 1 length

4.2 cm

Package 1 weight

3.0 g

Unit type of package 2

BB1

Number of units in package 2

5

Package 2 height

2.5 cm

Package 2 width

17.0 cm

Package 2 length

17.0 cm

Package 2 weight

19.0 g

Unit type of package 3

S03

Number of units in package 3

500

Package 3 height

30.0 cm

Package 3 width

30.0 cm

Package 3 length

40.0 cm

Package 3 weight

2.417 kg
