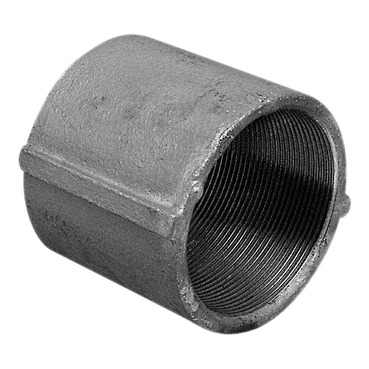

Clipsal - Cable Management, Machined Brass Steel Coupling, 40mm Galvanised
Item Number: 1242S40
Datasheet
Close
Specifications
Design
Product brand
Clipsal
Surface treatment
cast galvanised
Surface finish
polished
Product destination
diameter: 40-40 mm tube
Sustainable offer status
Green Premium product
Physical
Connector type
thread connector
Length
48.5...48.5 mm
Standards
CS 792/S|AS 2052|AS 1721
Reach regulation
Free of Substances of Very High Concern above the threshold
Reach free of svhc
Yes
Eu rohs directive
Pro-active compliance (Product out of EU RoHS legal scope)
Toxic heavy metal free
Yes
Mercury free
Yes
Rohs exemption information
Yes
China rohs regulation
Pro-active China RoHS declaration (out of China RoHS legal scope)
Environmental disclosure
ENVPEP110719EN
Circularity profile
N/A
Material
Material
steel
Others
Package 1 bare product quantity
1
Package 2 bare product quantity
10
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
5.5 cm
Package 1 width
5 cm
Package 1 length
5.5 cm
Package 1 weight
311 g
Unit type of package 2
BB1
Number of units in package 2
10
Package 2 height
11 cm
Package 2 width
12.4 cm
Package 2 length
17 cm
Package 2 weight
3.11 kg
