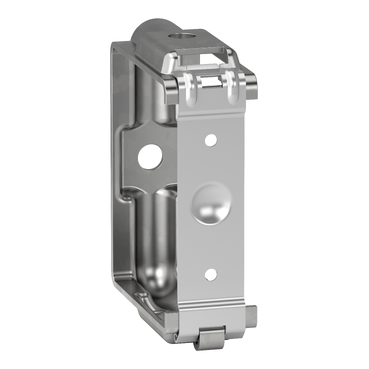

Canalis KBB Fixing bracket
Item Number: KBB40ZFU
This is an universal fixing bracket for Canalis KBB busbar trunking. Canalis KBB is designed for lighting and power socket distribution. Used for Canalis KBB busbar trunking with 40A rated operational current at 35°C. Fixing brackets can be used for suspension on a threaded rod, with a 6mm diameter, or for horizontal mounting (on a beam, pendant, wall). The maximum recommended distance between fixing is 5m. The maximum load is 60kg. Sold in lots of 10 units.
Specifications
Design
Range
Range of product
Product or component type
Product compatibility
Warranty
Physical
Quantity per set
Width
Depth
Height
Net weight
Standards
Reach free of svhc
Eu rohs directive
Toxic heavy metal free
Mercury free
Rohs exemption information
China rohs regulation
Environmental disclosure
Circularity profile
