Airflow, LED Downlight, 7W, 45dB

Home ProductsAir Movement & HeatingAirflowLED Downlight

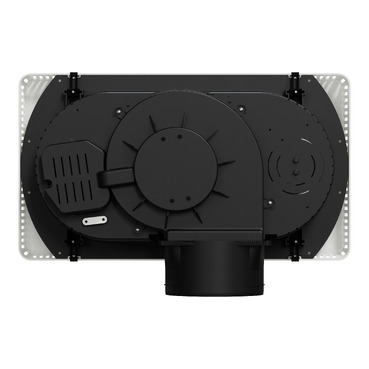

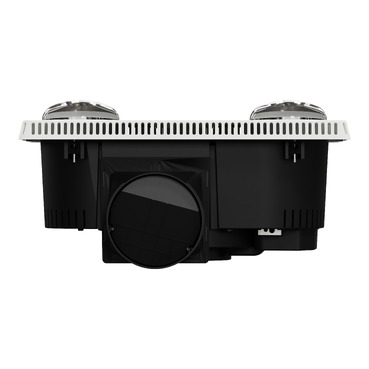

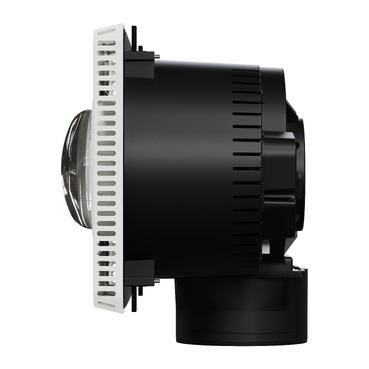

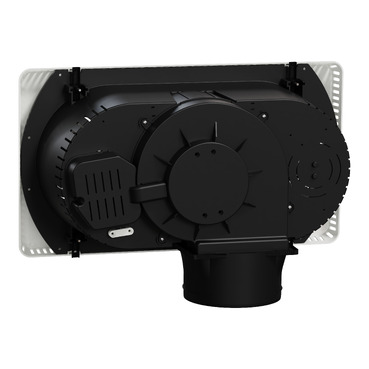

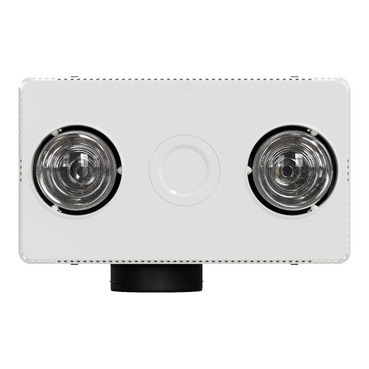

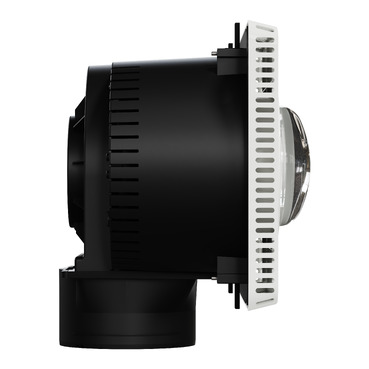

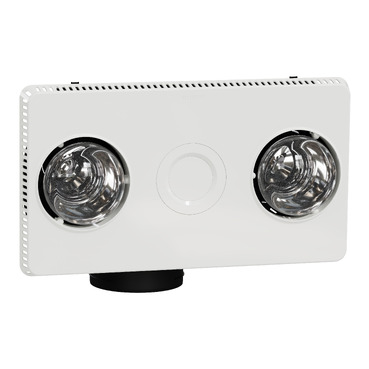

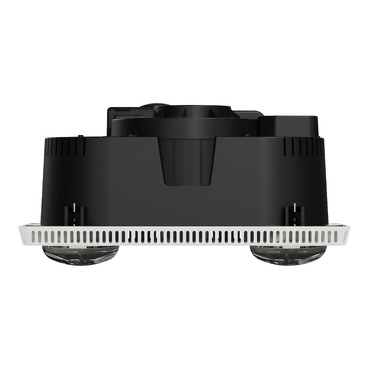

Airflow, LED Downlight, 7W, 45dB White Electric

Item Number: CPL7600ATP-WE

Where To Buy

Datasheet

PDF datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Airflow

Range

Airflow

Product brand

Clipsal

Product or component type

Fan, Light and Heater units

Product destination

ceiling fitting

Device application

duct

Physical

[ue] rated operational voltage

230/240 V AC 50 Hz

Power consumption in w

590 W

Depth

200 mm

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant with Exemptions

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Environmental disclosure

ENVPEP2402006_V1

Circularity profile

ENVEOLI2402006_V1

Others

Commercial status history

SESA65076 | Thu Oct 31 19:05:00 EDT 2024 | From Unitary Local | From 02 to 08

Package 1 bare product quantity

1

Package 2 bare product quantity

12

Main colour tint

white

Air flow

300 m3/h

Noise level

45 dB

Fan type

centrifugal

Heat dissipation

275 W

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

43 cm

Package 1 width

33 cm

Package 1 length

53.7 cm

Package 1 weight

6.3 kg

Unit type of package 2

PAL

Number of units in package 2

12

Package 2 height

110 cm

Package 2 width

114 cm

Package 2 length

114 cm

Package 2 weight

90.6 kg

Weee

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Carbon footprint (kg.eq.co2 per cr, total life cycle)

3287.2590037326872
