Datasheet
For CEF40N-WE
Close
Specifications
Design
Range of product
Airflow
Range
Airflow
Product brand
Clipsal
Product or component type
exhaust fan
Product destination
ceiling fitting
Warranty
3 Years
Physical
Provided equipment
fan 354 mm 354 mm 279 mm
[ue] rated operational voltage
230 V AC 50 Hz
Power consumption in w
35 W
[in] rated current
0.15 A full load
Depth
212 mm
Ip degree of protection
IPx4
Reach regulation
Reference contains Substances of Very High Concern above the threshold
Eu rohs directive
Compliant with Exemptions
Mercury free
Yes
Rohs exemption information
Yes
China rohs regulation
Product out of China RoHS scope. Substance declaration for your information
Environmental disclosure
ENVPEP2302013_V2
Circularity profile
N/A
Material
Material
ABS (acrylonitrile butadiene-styrene)
Documents & downloads
hide showFilter items
-
All
-
Environmental Disclosure
-
Installation Instruction
-
Certificates (MSDS)
ZIP
Fan Ceiling Exhaust 250mm
VERSION
1.0
DATE
25 Oct 2024
REVISION
1.0
DOWNLOAD (ZIP) 269.5 KB
ZIP
Fan Ceiling Exhaust 250mm
VERSION
1.0
DATE
15 Mar 2023
REVISION
1.0
DOWNLOAD (ZIP) 263 KB
ZIP
Install and user guide, CEF40N ceiling mounted, ductable square exhaust fan
VERSION
1.0
DATE
02 Nov 2023
REVISION
1.0
DOWNLOAD (ZIP) 4.2 MB
ZIP

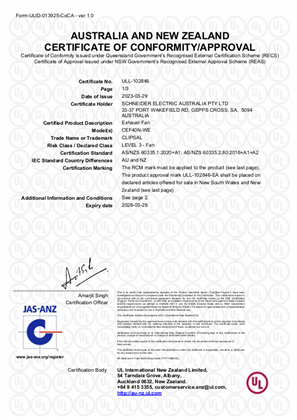

Clipsal, CEF40N ceiling exhaust fan, Certificate, RCM, ULNZ LTD
VERSION
1.0
DATE
23 Feb 2024
REVISION
1.0
DOWNLOAD (ZIP) 229.3 KB
