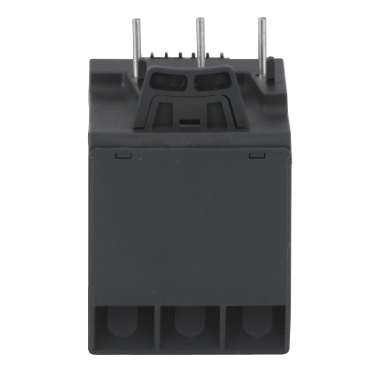

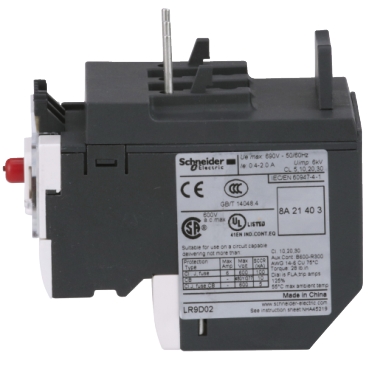

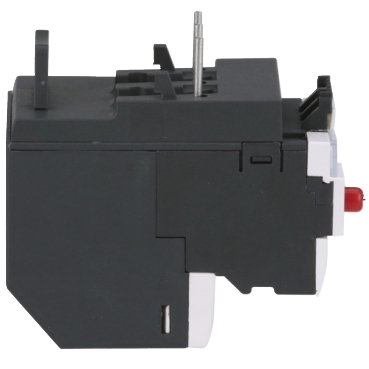

TeSys LR9, Overload relay, TeSys LRD, motor protection, withstand 6kV impulse and 2kV surge, 0.4A to 2A, electronic, thermal

Item Number: LR9D02

1 PCE 0

Where To Buy

Datasheet

Download

Product Dimensions

Width45 mm

Height72.5 mm

Depth79.9 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1		3606485420936	-

Specifications

Design

Range

TeSys

Product or component type

electronic thermal overload relay

Product compatibility

LC1D25|LC1D09|LC1D32|LC1D38|LC1D18|LC1D12

Sustainable offer status

Green Premium product

Physical

Power consumption in w

300 mW

Mounting support

under contactor|plate, with specific accessories|rail, with specific accessories

[ue] rated operational voltage

690 V for power circuit|660 V for signalling circuit

Control type

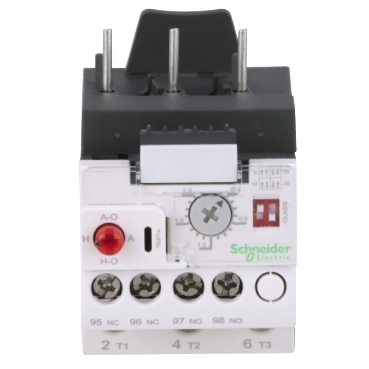

red push-button: stop and manual reset|white 2 microswitches: adjustable trip class|red knob: automatic reset|white dial: full-load current adjustment

Connections - terminals

control circuit: screw clamp terminals 1 cable 2.5-2.5 mm² - cable stiffness: solid or flexible - without cable end|power circuit: screw clamp terminals 1 cable 16-16 mm² - cable stiffness: solid or flexible - without cable end

Height

72.5 mm

Width

45 mm

Depth

79.9 mm

Net weight

0.18 kg

Standards

EN/IEC 60947-4-1|EN/IEC 60947-5-1|UL 60947-4-1|UL 60947-5-1|CSA C22.2 No 60947-4-1|CSA C22.2 No 60947-5-1|GB/T 14048.4|GB/T 14048.5

Product certifications

IECEE CB Scheme|UL|CSA|CCC

Ip degree of protection

IP20 front face conforming to IEC 60529

Ambient air temperature for operation

-25...70 °C conforming to IEC 60255...8

Ambient air temperature for storage

-55...80 °C

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant with Exemptions

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Environmental disclosure

ENVPEP1502001EN

Circularity profile

ENVEOLI1502001EN

California proposition 65

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Others

Life cycle assessment data

If one of the deliverables is not relevant please give the reason

Brand Label

Substance regulation data deliverable

Yes

Package 1 bare product quantity

Product name

TeSys LRD

Device short name

LR9D

Relay application

motor protection

Thermal overload class

class 5…30

Thermal protection adjustment range

0.4...2 A

[ui] rated insulation voltage

power circuit: 1000 V|signalling circuit: 690 V

Tripping threshold

1.25 In conforming to IEC 60947-4-1

Time range

1.5...4 min - automatic reset time

[ith] conventional free air thermal current

5 A for signalling circuit

Associated fuse rating

5 A gG for signalling circuit|5 A BS for signalling circuit

[uimp] rated impulse withstand voltage

6 kV

Phase failure sensitivity

phase difference > 40% 3-3 s conforming to IEC 60947-4-1

Electromagnetic compatibility

surge withstand: 2 kV common mode conforming to IEC 61000-4-5|resistance to electrostatic discharge: 8 kV conforming to IEC 61000-4-2|immunity to radiated radio-electrical interference: 10 V/m conforming to IEC 61000-4-3|immunity to fast transients: 2 kV conforming to IEC 61000-4-4

Tightening torque

control circuit: 0.8 N.m on screw clamp terminals|power circuit: 3.1 N.m on screw clamp terminals

Operating altitude

2000 m without derating

Mechanical robustness

vibrations 10...150 Hz: 6 Gn conforming to IEC 60068-2-6|shocks 11 ms: 15 gn conforming to IEC 60068-2-7

Dielectric strength

6 kV 50 Hz conforming to IEC 60255-5

Unit type of package 1

PCE

Number of units in package 1

Package 1 height
