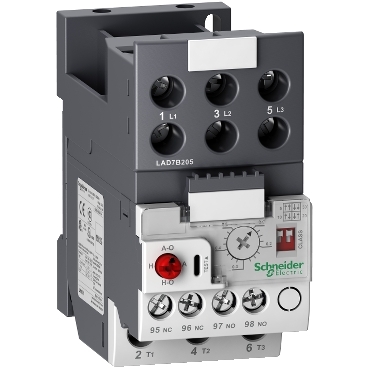

TeSys LR9, Electronic Thermal Overload Relay, 3P, 0.1...0.5 A

Home ProductsIndustrialTeSysElectronic Thermal Overload Relay

TeSys LR9, Electronic Thermal Overload Relay, 3P, 0.1...0.5 A

Item Number: LR9D01

Where To Buy

Datasheet

PDF datasheet

Download

Product Dimensions

Width icon

Width45 mm

Height icon

Height72.5 mm

Depth icon

Depth79.9 mm

See full specifications

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range

TeSys

Product or component type

electronic thermal overload relay

Product compatibility

LC1D09|LC1D25|LC1D32|LC1D12|LC1D38|LC1D18

Sustainable offer status

Green Premium product

Physical

Power consumption in w

300 mW

Mounting support

under contactor|plate, with specific accessories|rail, with specific accessories

[ue] rated operational voltage

690 V for power circuit|660 V for signalling circuit

Control type

red push-button: stop and manual reset|white 2 microswitches: adjustable trip class|red knob: automatic reset|white dial: full-load current adjustment

Connections - terminals

control circuit: screw clamp terminals 1 cable 2.5-2.5 mm² - cable stiffness: solid or flexible - without cable end|power circuit: screw clamp terminals 1 cable 16-16 mm² - cable stiffness: solid or flexible - without cable end

Height

72.5 mm

Width

45 mm

Depth

79.9 mm

Net weight

0.18 kg

Standards

EN/IEC 60947-4-1|EN/IEC 60947-5-1|UL 60947-4-1|UL 60947-5-1|CSA C22.2 No 60947-4-1|CSA C22.2 No 60947-5-1|GB/T 14048.4|GB/T 14048.5

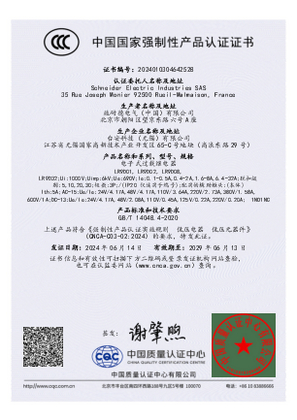

Product certifications

IECEE CB Scheme|UL|CSA|CCC

Ip degree of protection

IP20 front face conforming to IEC 60529

Ambient air temperature for operation

-25...70 °C conforming to IEC 60255...8

Ambient air temperature for storage

-55...80 °C

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant with Exemptions

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Environmental disclosure

ENVPEP1502001EN

Circularity profile

ENVEOLI1502001EN

California proposition 65

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Others

Package 1 bare product quantity

1

Product name

TeSys LRD

Device short name

LR9D

Relay application

motor protection

Thermal overload class

class 5…30

Thermal protection adjustment range

0.1...0.5 A

[ui] rated insulation voltage

power circuit: 1000 V|signalling circuit: 690 V

Tripping threshold

1.25 In conforming to IEC 60947-4-1

Time range

1.5...4 min - automatic reset time

[ith] conventional free air thermal current

5 A for signalling circuit

Associated fuse rating

5 A gG for signalling circuit|5 A BS for signalling circuit

[uimp] rated impulse withstand voltage

6 kV

Phase failure sensitivity

phase difference > 40% 3-3 s conforming to IEC 60947-4-1

Electromagnetic compatibility

surge withstand: 2 kV common mode conforming to IEC 61000-4-5|resistance to electrostatic discharge: 8 kV conforming to IEC 61000-4-2|immunity to radiated radio-electrical interference: 10 V/m conforming to IEC 61000-4-3|immunity to fast transients: 2 kV conforming to IEC 61000-4-4

Tightening torque

control circuit: 0.8 N.m on screw clamp terminals|power circuit: 3.1 N.m on screw clamp terminals

Operating altitude

2000 m without derating

Mechanical robustness

vibrations 10...150 Hz: 6 Gn conforming to IEC 60068-2-6|shocks 11 ms: 15 gn conforming to IEC 60068-2-7

Dielectric strength

6 kV 50 Hz conforming to IEC 60255-5

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

5.5 cm

Package 1 width

7.5 cm

Package 1 length

9.1 cm

Package 1 weight

209.0 g

Unit type of package 2

S02

Number of units in package 2

30

Package 2 height

15.0 cm

Package 2 width

30.0 cm

Package 2 length

40.0 cm

Package 2 weight

6.725 kg

Unit type of package 3

P06

Number of units in package 3

480

Package 3 height

50.0 cm

Package 3 width

80.0 cm

Package 3 length

60.0 cm

Package 3 weight

121.86 kg

Weee

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Show all specifications

Documents & downloads

hide show
Filter items

  • All

  • Product Brochures

  • CAD Files and Packs

  • Technical Data Catalogues

  • Data Bulletin

  • Installation Instruction

  • Technical Drawing

  • Declaration of Conformity

  • Certificates (MSDS)

TeSys LR9D electronic overload relay - brochure (US version)
ZIP

TeSys LR9D electronic overload relay - brochure (US version)

VERSION

1.0

DATE

06 Feb 2024

REVISION

1.0

DOWNLOAD (ZIP) 1.6 MB
Electronic thermal overload protection TeSys LR9D 0.1... 32 Amps with accessorie LAD7B205
ZIP

Electronic thermal overload protection TeSys LR9D 0.1... 32 Amps with accessorie LAD7B205

VERSION

1.0

DATE

29 Sep 2023

REVISION

1.0

DOWNLOAD (ZIP) 1.2 MB
TeSys LR.D - Electronic thermal overload protection TeSys LR9D 0.1... 32 Amps - 3D CAD
ZIP

TeSys LR.D - Electronic thermal overload protection TeSys LR9D 0.1... 32 Amps - 3D CAD

VERSION

1.0

DATE

18 Feb 2022

REVISION

1.0

DOWNLOAD (ZIP) 1.3 MB
TeSys - Catalog 2024 - Innovative and connected solutions for motor starters
ZIP

TeSys - Catalog 2024 - Innovative and connected solutions for motor starters

VERSION

15.0

DATE

15 Sep 2024

REVISION

15.0

DOWNLOAD (ZIP) 76.8 MB
Digest Catalog 16: NEMA and Definite Purpose Contactors and Starters
ZIP

Digest Catalog 16: NEMA and Definite Purpose Contactors and Starters

VERSION

1.2

DATE

28 Aug 2024

REVISION

1.2

DOWNLOAD (ZIP) 8.7 MB
TeSys Catalogue - 2022 - Chapter B11 - Overload relays TeSys LRK, Deca, Giga, RM1, LT3
ZIP

TeSys Catalogue - 2022 - Chapter B11 - Overload relays TeSys LRK, Deca, Giga, RM1, LT3

VERSION

9.0

DATE

21 Feb 2024

REVISION

9.0

DOWNLOAD (ZIP) 5.6 MB
Motor Control Solutions for the North American Market Data Bulletin
ZIP

Motor Control Solutions for the North American Market Data Bulletin

VERSION

4.5

DATE

25 Mar 2024

REVISION

4.5

DOWNLOAD (ZIP) 1.1 MB
TeSys LR9D/LR9F Overload Relays Instruction Bulletin
ZIP

TeSys LR9D/LR9F Overload Relays Instruction Bulletin

VERSION

1.0

DATE

01 Mar 2024

REVISION

1.0

DOWNLOAD (ZIP) 1.7 MB
TeSys LR9D, electronic thermal overload relays
ZIP

TeSys LR9D, electronic thermal overload relays

VERSION

2.0

DATE

29 Sep 2023

REVISION

2.0

DOWNLOAD (ZIP) 5.6 MB
Motor Logic Solid-State Overload Relay Installation Instructions
ZIP

Motor Logic Solid-State Overload Relay Installation Instructions

VERSION

1.0

DATE

18 May 2023

REVISION

1.0

DOWNLOAD (ZIP) 774 KB
CAD drawing for Electronic thermal overload protection TeSys LR9D 0.1... 32 Amps
ZIP

CAD drawing for Electronic thermal overload protection TeSys LR9D 0.1... 32 Amps

VERSION

1.0

DATE

29 Sep 2023

REVISION

1.0

DOWNLOAD (ZIP) 350.6 KB
CAD drawing for TeSys LR9D 0.1... 32 Amps
ZIP

CAD drawing for TeSys LR9D 0.1... 32 Amps

VERSION

1.0

DATE

03 Feb 2021

REVISION

1.0

DOWNLOAD (ZIP) 509.9 KB
EU Declaration SC16040807B TeSys LR9D-LR9D110s-LAD7B205
ZIP

EU Declaration SC16040807B TeSys LR9D-LR9D110s-LAD7B205

VERSION

1.0

DATE

23 Feb 2024

REVISION

1.0

DOWNLOAD (ZIP) 298.2 KB
TeSys LR9, Certificate, ABS
ZIP

TeSys LR9, Certificate, ABS

VERSION

1.0

DATE

06 Oct 2022

REVISION

1.0

DOWNLOAD (ZIP) 741.1 KB

Frequently Asked Questions

hide show

What is the difference between LAD703 and LA7D03

Issue:
Identifying differences between two similar part numbers

Product Line:
IEC contactors and starters

Environment:
Products sold and used in the United States

Cause:
Identifying differences between two similar part numbers

Resolution:
Both will remotely stop (trip) or electrically reset the overload, however;
LAD703 is used on Tesys overload LRD01 through LRD35 and LR3D01 to LR3D35.
LA7D03 is used on all other LR*D overload relays other than LRD01 to LRD35 and LR3D01 to LR3D35.*

*LR9D01-LR9D32 electronic overload relays do not currently have a remote reset module accessory
