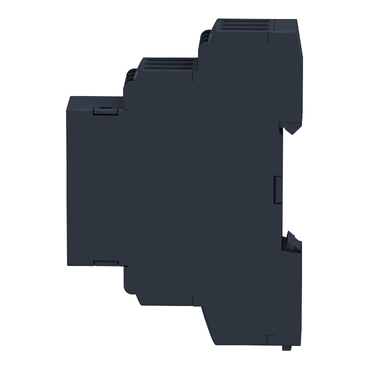

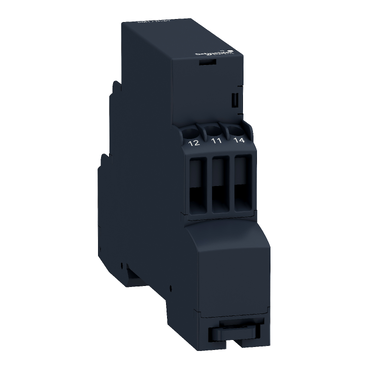

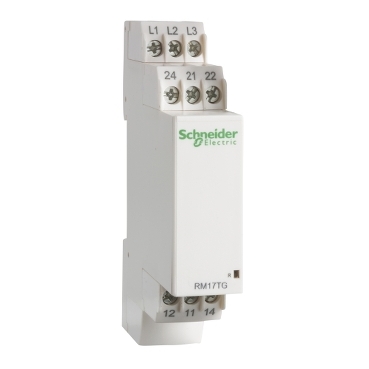

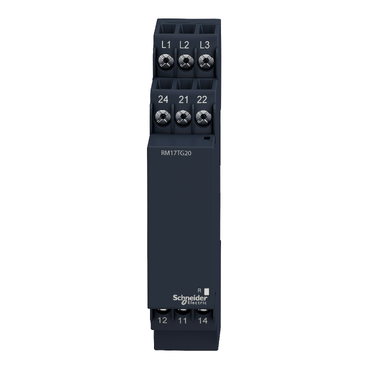

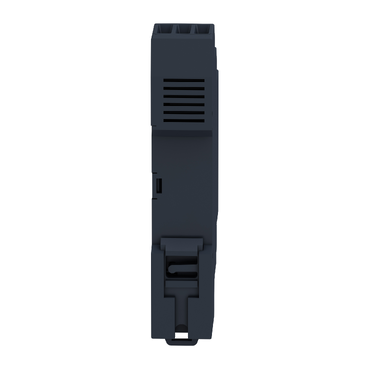

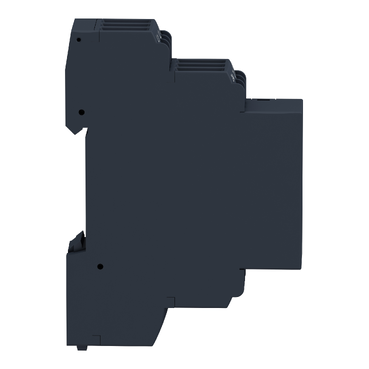

Harmony Control Relays, Modular 3 phase supply Control Relay, 5A, 2CO, 208...440V AC

Item Number: RM17TG20

1 PCE 0

Where To Buy

Datasheet

Download

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1		3389119405072	-

Specifications

Design

Range of product

Harmony Control Relays

Product or component type

3-phase control relay

Sustainable offer status

Green Premium product

Warranty

18 months

Physical

Connections - terminals

screw connectors

[in] rated current

5 A

Marking

Insulation resistance

> 500 MOhm at 500 V DC conforming to IEC 60255-5|> 500 MOhm at 500 V DC conforming to IEC 60664-1

Connections - terminals

screw terminals, 1 x 0.5...1 x 4 mm² (AWG 20...AWG 11) solid without cable end|screw terminals, 2 x 0.5...2 x 2.5 mm² (AWG 20...AWG 14) solid without cable end|screw terminals, 1 x 0.2...1 x 2.5 mm² (AWG 24...AWG 12) flexible with cable end|screw terminals, 2 x 0.2...2 x 1.5 mm² (AWG 24...AWG 16) flexible with cable end

Local signalling

LED (yellow) for relay ON

Mounting support

35 mm symmetrical DIN rail conforming to IEC 60715

Electrical durability

10000 cycles

Mechanical durability

30000000 cycles

Width

17.5 mm

Net weight

0.13 kg

Control type

without test button

Standards

IEC 60255-1

Product certifications

GOST|C-Tick|UL|CSA|GL

Ambient air temperature for storage

-40...70 °C

Ambient air temperature for operation

-20...50 °C

Relative humidity

95 % at 55 °C conforming to IEC 60068...2-30

Ip degree of protection

IP20 (terminals) conforming to IEC 60529|IP30 (casing) conforming to IEC 60529

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

Environmental disclosure

ENVPEP1504008EN

Circularity profile

ENVEOLI1504008EN

California proposition 65

"WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov"

Others

Package 1 bare product quantity

Package 2 bare product quantity

Package 3 bare product quantity

768

Relay type

control relay

Product specific application

for 3-phase supply

Relay name

RM17TG

Relay monitored parameters

phase sequence|phase failure detection (2 or more phase cut)

Time delay type

without

Switching capacity in va

1250 VA

Measurement range

208...480 V AC

Contacts type and composition

2 C/O

[uc] control circuit voltage

208...440 V

Maximum switching voltage

250 V AC|250 V DC

Minimum switching current

10 mA at 5 V DC

[us] rated supply voltage

, self-powered

Supply voltage limits

183...484 V AC

Control circuit voltage limits

- 12 % + 10 % Un

Power consumption in va

0...22 VA at 400 V AC 50 Hz

Voltage detection threshold

< 100 V AC

Control circuit frequency

50...60 Hz +/- 10 %

Output contacts

2 C/O

Nominal output current

5 A

Measurement voltage limits

183...484 V AC

Run-up delay at power-up

650 ms

Voltage range

183...484 V

Response time

<= 130 ms (in the event of a fault)

Overvoltage category

III conforming to IEC 60664-1

[ui] rated insulation voltage

400 V conforming to IEC 60664-1

Supply frequency

50/60 Hz +/- 10 %

Operating position

any position without derating

Tightening torque

0.6...1 N.m conforming to IEC 60947...1

Housing material

self-extinguishing plastic

Operating rate

<= 360 operations/hour full load

Utilisation category

Safety reliability data

B10d = 850000|MTTFd = 924.6 years

Compatibility code

RM17

Electromagnetic compatibility

emission standard for industrial environments conforming to IEC 61000-6-4|emission standard for residential, commercial and light-industrial environments conforming to IEC 61000-6-3|immunity for industrial environments conforming to IEC 61000-6-2

Directives

73/23/EEC - low voltage directive|89/336/EEC - electromagnetic compatibility

Vibration resistance

0.35 mm (f= 5-57.6 Hz) conforming to IEC 60068-2-6|1 gn (f= 57.6-150 Hz) conforming to IEC 60255-21-1

Shock resistance

15 gn for 11 ms conforming to IEC 60255-21-1

Pollution degree

3 conforming to IEC 60664-1

Dielectric test voltage

2 kV, 1 min AC 50 Hz

Non-dissipating shock wave

4 kV

Unit type of package 1

PCE

Number of units in package 1

Package 1 height

2.300 cm

Package 1 width

7.800 cm

Package 1 length

9.700 cm

Package 1 weight

90.000 g

Unit type of package 2

S02

Number of units in package 2

Package 2 height

15.000 cm

Package 2 width

30.000 cm

Package 2 length

40.000 cm

Package 2 weight

4.830 kg

Unit type of package 3

P06

Number of units in package 3

768

Package 3 height

75.000 cm

Package 3 width

60.000 cm

Package 3 length

80.000 cm

Package 3 weight

87.204 kg
