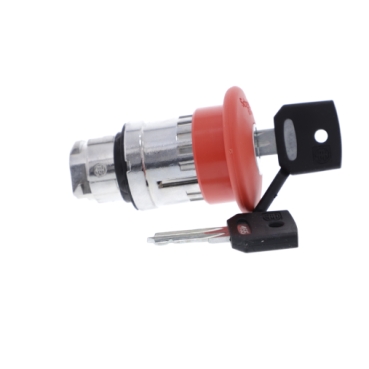

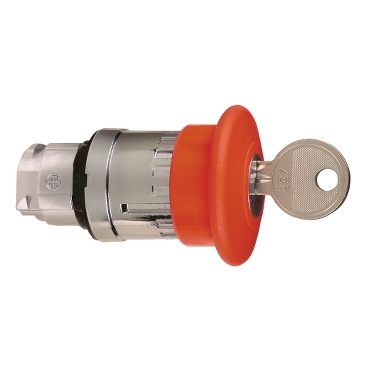

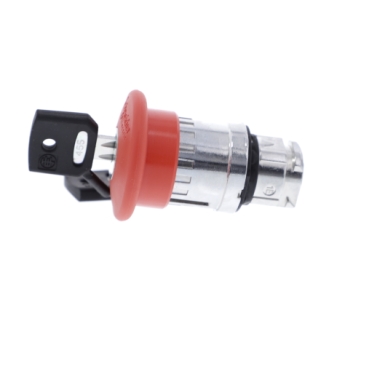

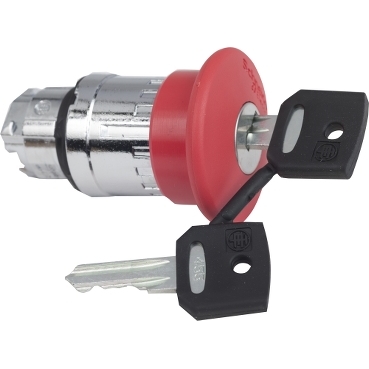

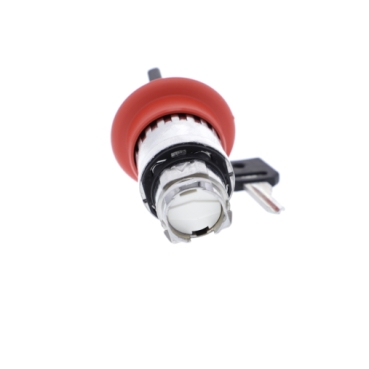

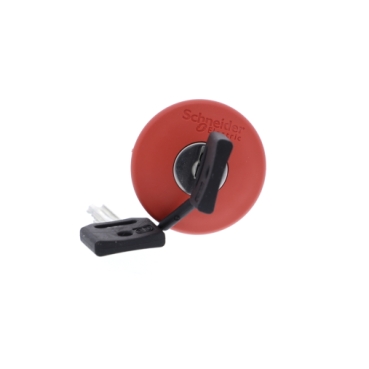

Harmony XB4, Emergency stop head, switching off, metal, red mushroom 40mm, 22mm, trigger latching key release

Home ProductsIndustrialHarmonyEmergency stop head

Harmony XB4, Emergency stop head, switching off, metal, red mushroom 40mm, 22mm, trigger latching key release

Item Number: ZB4BS944

Where To Buy

Datasheet

PDF datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Harmony XB4

Product or component type

head for emergency switching off push-button

Sustainable offer status

Green Premium product

Warranty

18 months

Physical

Sale per indivisible quantity

1

Net weight

0.098 kg

Mechanical durability

300000 cycles

Marking

unmarked

Device presentation

basic element

Ambient air temperature for storage

-40...70 °C

Ambient air temperature for operation

-40...70 °C

Ip degree of protection

IP66 conforming to IEC 60529|IP67|IP69|IP69K

Ik degree of protection

IK03 conforming to IEC 50102

Standards

CSA C22.2 No 14|IEC 60204-1|IEC 60947-1|GB 14048.5|IEC 60947-5-1|ISO 13850|IEC 60947-5-5|JIS C8201-5-1|IEC 60947-5-4|UL 508|IEC 60364-5-53|JIS C8201-1

Product certifications

GL|BV|CSA|LROS (Lloyds register of shipping)|DNV|UL listed

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

X

Environmental disclosure

ENVPEP2201004EN

Circularity profile

ENVEOLI2201004EN

California proposition 65

"WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov"

Others

Package 1 bare product quantity

1

Device short name

ZB4

Bezel material

chromium plated metal

Mounting diameter

22.5 mm

Shape of signaling unit head

round

Type of operator

trigger action and mechanical latching

Reset

key release

Operator profile

red mushroom Ø 40 mm, unmarked

Type of keylock

key 455

Key withdrawal position

center

Head type

standard

Cap/operator or lens colour

red

Cad overall width

40 mm

Cad overall height

40 mm

Cad overall depth

79 mm

Resistance to high pressure washer

7000000 Pa at 55 °C, distance : 0.1 m

Electrical composition code

C7 for <4 contacts using single blocks in front mounting|C8 for <4 contacts using single and double blocks in front mounting|C11 for <3 contacts using single blocks in front mounting|C15 for <1 contacts using single blocks in front mounting|C10 for <4 contacts using single and double blocks in front mounting

Main group

E-stop

Group of product

emergency stop key release

Cap/operator or lens colour

red

Customizable

no

Customizable

0

Compatibility code

ZB4

Protective treatment

TH

Electrical shock protection class

class I conforming to IEC 61140

Nema degree of protection

NEMA 13|NEMA 4X|NEMA 4|NEMA 12

Vibration resistance

5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6

Shock resistance

30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27|50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

4.4 cm

Package 1 width

5.3 cm

Package 1 length

8.8 cm

Package 1 weight

103.0 g

Unit type of package 2

S03

Number of units in package 2

100

Package 2 height

30.0 cm

Package 2 width

30.0 cm

Package 2 length

40.0 cm

Package 2 weight

10.778 kg
Show all specifications

Documents & downloads

hide show
Filter items

  • All

  • CAD Files and Packs

  • Technical Data Catalogues

  • Installation Instruction

  • End of Life Manual

  • Environmental Disclosure

  • Technical illustration

  • Technical Drawing

  • eTechPub

  • Certificates (MSDS)

  • Declaration of Conformity

ZB4BS944_CAD
ZIP

ZB4BS944_CAD

VERSION

1.0

DATE

29 Sep 2023

REVISION

1.0

DOWNLOAD (ZIP) 339.9 KB
Discover the Harmony XB4 metal Control and signaling units catalog
ZIP

Discover the Harmony XB4 metal Control and signaling units catalog

VERSION

17.0

DATE

06 Sep 2024

REVISION

17.0

DOWNLOAD (ZIP) 28.1 MB
Catalog Safety chain solutions & Safety functions English 07/2020
ZIP

Catalog Safety chain solutions & Safety functions English 07/2020

VERSION

2.1

DATE

08 May 2024

REVISION

2.1

DOWNLOAD (ZIP) 5.1 MB
XB4.. / XB5... Mounting, Instruction Sheet
ZIP

XB4.. / XB5... Mounting, Instruction Sheet

VERSION

2.0

DATE

05 Sep 2024

REVISION

2.0

DOWNLOAD (ZIP) 453.4 KB
Harmony XB4B/XB5A, ZB4B/ZB5A 22mm Push Buttons Installation Instructions
ZIP

Harmony XB4B/XB5A, ZB4B/ZB5A 22mm Push Buttons Installation Instructions

VERSION

1.0

DATE

22 Aug 2024

REVISION

1.0

DOWNLOAD (ZIP) 152.9 KB
ZB4..., ZB5... Mounting XB4 pushbuttons chromium plated metal bezel and XB5 plastic bezel with or without circular yellow legends ZBY9.2., Instruction Sheet (EN)
ZIP

ZB4..., ZB5... Mounting XB4 pushbuttons chromium plated metal bezel and XB5 plastic bezel with or without circular yellow legends ZBY9.2., Instruction Sheet (EN)

VERSION

1.0

DATE

16 Aug 2024

REVISION

1.0

DOWNLOAD (ZIP) 1.7 MB
ZB4... / ZB5... Emergency Stop pushbuttons, Instruction Sheet
ZIP

ZB4... / ZB5... Emergency Stop pushbuttons, Instruction Sheet

VERSION

1.0

DATE

20 May 2024

REVISION

1.0

DOWNLOAD (ZIP) 1.8 MB
ASISSLB5 AS-Interface Safety Interface for plastic emergency stop, diam 22
ZIP

ASISSLB5 AS-Interface Safety Interface for plastic emergency stop, diam 22

VERSION

1.0

DATE

29 Sep 2023

REVISION

1.0

DOWNLOAD (ZIP) 147.5 KB
ASISSLB4 AS-Interface Safety interface for metal emergency stop, diam 22
ZIP

ASISSLB4 AS-Interface Safety interface for metal emergency stop, diam 22

VERSION

1.0

DATE

29 Sep 2023

REVISION

1.0

DOWNLOAD (ZIP) 149.8 KB
Emergency Stop Pushbutton
ZIP

Emergency Stop Pushbutton

VERSION

1.0

DATE

20 Jun 2024

REVISION

1.0

DOWNLOAD (ZIP) 270.2 KB
Emergency Stop Pushbutton, Product Environmental Profile, IA
ZIP

Emergency Stop Pushbutton, Product Environmental Profile, IA

VERSION

1.0

DATE

17 Jun 2024

REVISION

1.0

DOWNLOAD (ZIP) 305.5 KB
Technical Illustration - Dimensions
ZIP

Technical Illustration - Dimensions

VERSION

2.1

DATE

20 May 2024

REVISION

2.1

DOWNLOAD (ZIP) 691.2 KB

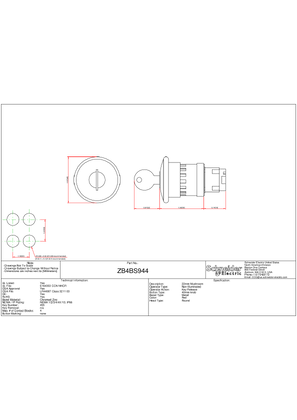

ZB4BS944_2DSalesDrawing_PDF
