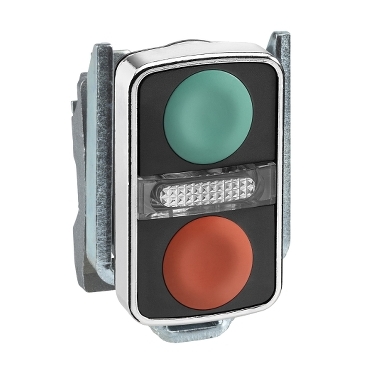

green flush/red flush illuminated double-headed pushbutton Ø22 unmarked

Home ProductsIndustrialHarmonyComplete body/contact assembly and light block

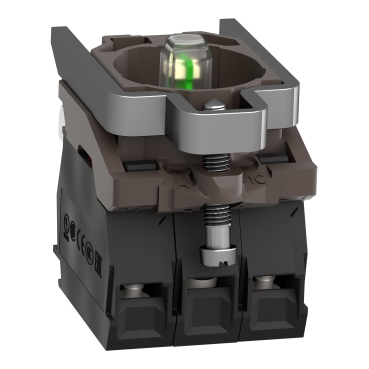

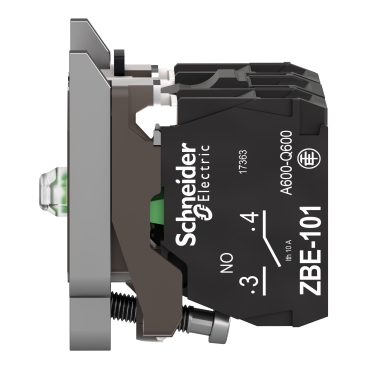

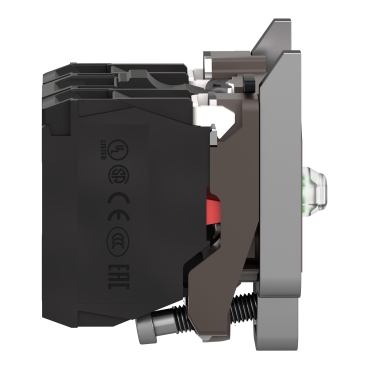

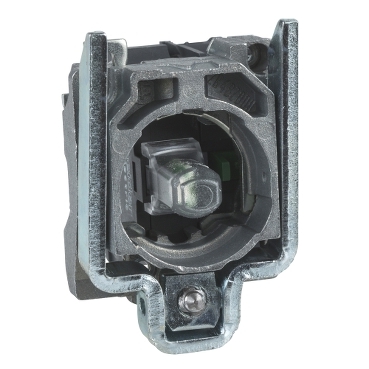

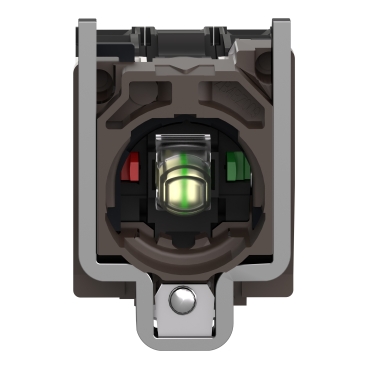

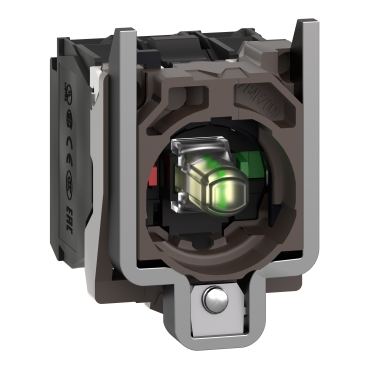

Harmony XB4, Complete body/contact assembly and light block, metal, universal LED, body/fixing collar, 1NO + 1NC, 24V AC DC

Item Number: ZB4BW0B15

1 PCE 0

Where To Buy

Datasheet

Download

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1		3389110893113	-
5		53389110893118	-

Specifications

Design

Range of product

Harmony XB4

Product or component type

complete body/contact assembly and light block

Warranty

18 months

Physical

Sale per indivisible quantity

Connections - terminals

screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1|screw clamp terminals, >= 1 x 0.22 mm² without cable end conforming to IEC 60947-1

Net weight

0.074 kg

Mechanical durability

5000000 cycles

[ie] rated operational current

3 A at 240 V, AC-15, A600 conforming to IEC 60947-5-1|6 A at 120 V, AC-15, A600 conforming to IEC 60947-5-1|0.1 A at 600 V, DC-13, Q600 conforming to IEC 60947-5-1|0.27 A at 250 V, DC-13, Q600 conforming to IEC 60947-5-1|0.55 A at 125 V, DC-13, Q600 conforming to IEC 60947-5-1|1.2 A at 600 V, AC-15, A600 conforming to IEC 60947-5-1

Electrical durability

1000000 cycles, AC-15, 2 A at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C|1000000 cycles, AC-15, 3 A at 120 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C|1000000 cycles, AC-15, 4 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C|1000000 cycles, DC-13, 0.2 A at 110 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C|1000000 cycles, DC-13, 0.5 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C

Device presentation

basic sub-assemblies

Ambient air temperature for storage

-40...70 °C

Ambient air temperature for operation

-40...70 °C

Standards

JIS C8201-5-1|IEC 60947-1|CSA C22.2 No 14|IEC 60947-5-5|IEC 60947-5-1|IEC 60947-5-4|UL 508|JIS C8201-1

Product certifications

LROS (Lloyds register of shipping)|BV|UL listed|CSA|GL|DNV

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

California proposition 65

"WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov"

Material

Contacts material

silver alloy (Ag/Ni)

Others

Package 1 bare product quantity

Package 2 bare product quantity

150

Package 3 bare product quantity

1200

Device short name

ZB4

Fixing collar material

zamak

Head type

standard

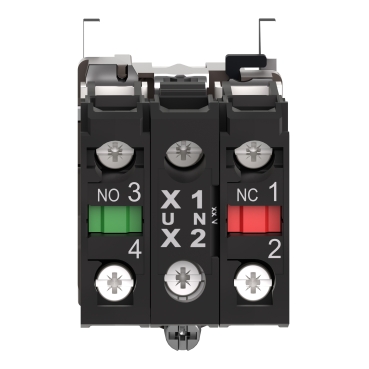

Contacts type and composition

1 NO + 1 NC

Contact operation

slow-break

Light source

universal LED

Bulb base

integral LED

Light block supply

direct

Light source colour

white

[us] rated supply voltage

24 V AC/DC at 50/60 Hz

[us] rated supply voltage

24 V

Cad overall width

30 mm

Cad overall height

47 mm

Terminals description iso n°1

(11-12)NC

Contacts usage

standard

Positive opening

with conforming to IEC 60947-5-1 appendix K

Operating travel

1.5 mm (NC changing electrical state)|2.6 mm (NO changing electrical state)|4.3 mm (total travel)

Operating force

2 N NC changing electrical state|2.3 N NO changing electrical state

Operating torque

0.05 N.m NO changing electrical state

Tightening torque

0.8...1.2 N.m conforming to IEC 60947...1

Shape of screw head

cross compatible with Philips no 1 screwdriver|cross compatible with pozidriv No 1 screwdriver|slotted compatible with flat Ø 4 mm screwdriver|slotted compatible with flat Ø 5.5 mm screwdriver

Short-circuit protection

10 A cartridge fuse type gG conforming to IEC 60947-5-1

[ith] conventional free air thermal current

10 A conforming to IEC 60947-5-1

[ui] rated insulation voltage

600 V (pollution degree 3) conforming to IEC 60947-1

[uimp] rated impulse withstand voltage

6 kV conforming to IEC 60947-1

Electrical reliability

λ < 10exp(-6) at 5 V and 1 mA in clean environment conforming to IEC 60947-5-4|λ < 10exp(-8) at 17 V and 5 mA in clean environment conforming to IEC 60947-5-4

Signalling type

steady

Supply voltage limits

19.2...30 V DC|21.6...26.4 V AC

Current consumption

18 mA

Service life

100000 h at rated voltage and 25 °C

Surge withstand

1 kV conforming to IEC 61000-4-5

Customizable

Compatibility code

ZB4

Protective treatment

Electrical shock protection class

class I conforming to IEC 60536

Vibration resistance

5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6

Shock resistance

30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27|50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27

Resistance to fast transients

2 kV conforming to IEC 61000-4-4

Resistance to electromagnetic fields

10 V/m conforming to IEC 61000-4-3

Resistance to electrostatic discharge

6 kV on contact (on metal parts) conforming to IEC 61000-2-6|8 kV in free air (in insulating parts) conforming to IEC 61000-2-6

Electromagnetic emission

class B conforming to IEC 55011

Unit type of package 1

PCE

Number of units in package 1

Package 1 height

5.600 cm

Package 1 width

3.400 cm

Package 1 length

5.400 cm

Package 1 weight

70.000 g

Unit type of package 2

S03

Number of units in package 2

150

Package 2 height

30.000 cm

Package 2 width

30.000 cm

Package 2 length

40.000 cm

Package 2 weight

10.991 kg

Unit type of package 3

P06

Number of units in package 3

1200

Package 3 height

75.000 cm

Package 3 width

60.000 cm

Package 3 length

80.000 cm

Package 3 weight

100.644 kg

Weee

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Show all specifications

Documents & downloads

hide show

Colour ()

Harmony XB4, Complete body/contact assembly and light block, metal, universal LED, body/fixing collar, 1NO + 1NC, 24V AC DC

Item Number: ZB4BW0B15

Colour ()

Datasheet

Barcode

Specifications

Design

Physical

Material

Others

Documents & downloads

All

CAD Files and Packs

Technical Data Catalogues

Installation Instruction

Technical illustration

Technical Drawing

eTechPub

Certificates (MSDS)

Declaration of Conformity

ZB4BW0B15_CAD_DOC

Discover the Harmony XB4 metal Control and signaling units catalog

XB4.. / XB5... Mounting, Instruction Sheet

Harmony XB4B/XB5A, ZB4B/ZB5A 22mm Push Buttons Installation Instructions

ZB4..., ZB5... Mounting XB4 pushbuttons chromium plated metal bezel and XB5 plastic bezel with or without circular yellow legends ZBY9.2., Instruction Sheet (EN)

Technical Illustration - Dimensions

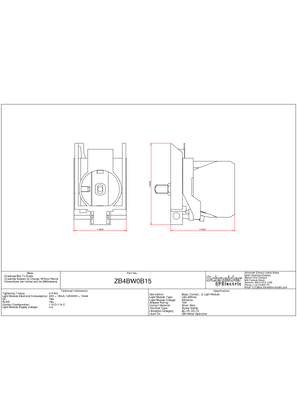

ZB4BW0B15_2DSalesDrawing_PDF
