PowerTag Digital input output module C IO 230V

Home ProductsCircuit ProtectionPowerTagDigital input output module

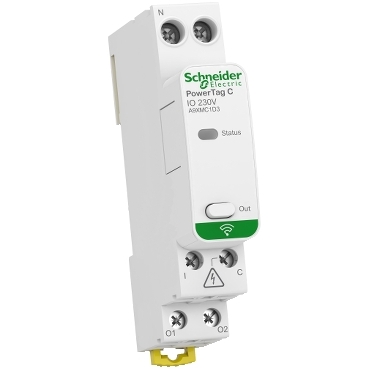

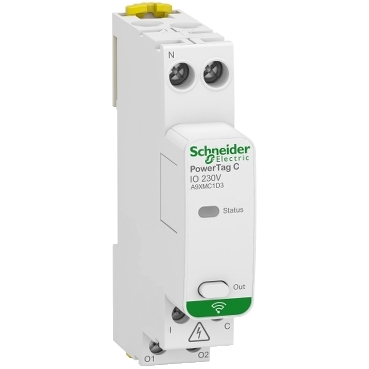

PowerTag Digital input output module C IO 230V

Item Number: A9XMC1D3

Where To Buy

Datasheet

PDF datasheet

Download

Product Dimensions

Width icon

Width18 mm

Height icon

Height85 mm

Depth icon

Depth62 mm

See full specifications

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range

PowerTag

Product or component type

input and ouput module

Physical

Range compatibility

  • Acti9 impulse relay
  • Acti9 contactor
  • Acti9 iACTs remote indication auxiliary
  • Acti9 iATLs remote indication auxiliary

Mechanical durability

100000 cycles for output

Mounting mode

clip-on

Mounting support

DIN rail

Local signalling

green, orange and red LED for product status

Height

85 mm

Width

18 mm

Depth

62 mm

Net weight

80 g

Connections - terminals

  • tunnel type terminals (top) - 1 cable(s) 1-16 mm² (AWG 18...AWG 16) - rigid
  • tunnel type terminals (top) - 1 cable(s) 0.5-10 mm² (AWG 21...AWG 8) - flexible
  • tunnel type terminals (bottom) - 1 cable(s) 1-6 mm² (AWG 18...AWG 10) - rigid
  • tunnel type terminals (bottom) - 1 cable(s) 0.5-4 mm² (AWG 21...AWG 12) - flexible
  • tunnel type terminals (bottom) - 1 cable(s) 0.5-4 mm² (AWG 21...AWG 12) - flexible with ferrule
  • tunnel type terminals (bottom) - 2 cable(s) 1.5-2.5 mm² (AWG 16...AWG 14) - rigid
  • tunnel type terminals (bottom) - 2 cable(s) 1.5-2.5 mm² (AWG 16...AWG 14) - flexible

Wire stripping length

  • 14 mm for top connection
  • 9 mm for bottom connection

Standards

  • EN/IEC 61010-1
  • ETSI EN 300 328
  • EN/IEC 62479
  • ETSI EN 301 489-17
  • ETSI EN 301 489-1
  • EN/IEC 61010-2-201
  • EN/IEC 61326-1

Ip degree of protection

  • IP20 casing: conforming to IEC 60529
  • IP40 front face: conforming to IEC 60529

Ik degree of protection

IK05

Relative humidity

0...93 % at 40 °C conforming to IEC 60068...2-78

Ambient air temperature for operation

-25...60 °C

Ambient air temperature for storage

-40...85 °C

Mercury free

Yes

Rohs exemption information

Yes

Environmental disclosure

ENVPEP1812012EN

Eu rohs directive

Compliant with Exemptions

Reach regulation

Reference contains Substances of Very High Concern above the threshold

China rohs regulation

X

Material

Material

PA6 GF30

Others

Package 2 bare product quantity

80

Average percentage of recycled plastic content

0 %

Package 1 bare product quantity

1

Legacy weee scope

In

At least in Europe

Weee label

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Device short name

PowerTag C IO 230V

Product name

PowerTag Control

Concentrator compatibility

  • Acti9 PowerTag Link C
  • Wiser IP module
  • Acti9 PowerTag Link
  • Acti9 PowerTag Link HD

Communication mode

[us] rated supply voltage

230 V AC (+/- 20 %)

Network frequency

50/60 Hz

Power consumption in va

2 VA

Digital input number

1

Input type

dry contact 230 V AC 2 mA

Voltage state 1 guaranteed

>= 164 V for digital input

Voltage state 0 guaranteed

<= 40 V for digital input

Current state 1 guaranteed

>= 2 mA (digital input)

Current state 0 guaranteed

<= 0.5 mA (digital input)

Digital output number

1

Output type

dry contact 230 V 0.01...2 A AC

Discrete output type

configurable relay logic

Output function

NO/NC programmable

Total power losses

2 W

Impulse duration

300 ms by default - 0 ms, + 300 ms

Time between 2 impulse

100 ms minimum - tolerance: - 0 ms, + 300 ms

9 mm pitches

2

Tightening torque

  • power supply: 2 N.m top
  • digital input/output: 1 N.m bottom

Pollution degree

3

Overvoltage category

III conforming to IEC 61010-1

Operating altitude

0...2000 m

Fire resistance

960 °C / 30 s conforming to UL 94 V0

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

2.800 cm

Package 1 width

8.000 cm

Package 1 length

11.500 cm

Package 1 weight

116.000 g

Unit type of package 2

S03

Number of units in package 2

80

Package 2 height

30.000 cm

Package 2 width

30.000 cm

Package 2 length

40.000 cm

Package 2 weight

9.506 kg

Green premium status for reporting

Green Premium product

Sustainable packaging

No

Energy efficiency optimized

False

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Average percentage of recycled metal content

0 %

Packaging made with recycled cardboard

No

Packaging without single use plastic

Yes

Scip number

874eaa72-407d-4df4-8e46-7d96313f1338

China rohs label

3

Rohs eur status

Compliant By Exemption

End of life manual availability

ENVEOLI1812012EN

Take-back

No

Weee label

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Warranty (in months)

18
Show all specifications

Documents & downloads

hide show
Filter items

  • All

  • CAD Files and Packs

  • Other technical guide

  • Installation Instruction

  • Environmental Disclosure

  • End of Life Manual

  • Operating Manuals

  • Specification Guide

  • Application Notes

  • Declaration of Conformity

  • Declaration of Conformity (Sustainability)

  • Architecture Guidelines & TVDA

Important: Some software files may need a mySchneider or Club login to download.
PowerTag C IO 230V - 3D CAD
ZIP

PowerTag C IO 230V - 3D CAD

VERSION

1.0

DATE

04 Oct 2023

REVISION

1.0

DOWNLOAD (ZIP) 1.2 MB

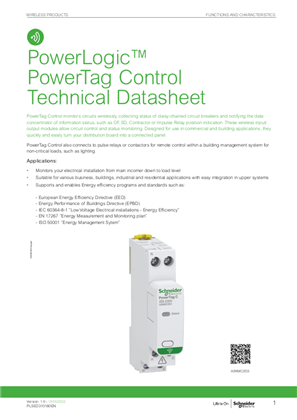

PowerLogic PowerTag Control Technical Datasheet
ZIP

PowerLogic PowerTag Control Technical Datasheet

VERSION

1.1

DATE

18 May 2022

REVISION

1.1

DOWNLOAD (ZIP) 685.6 KB

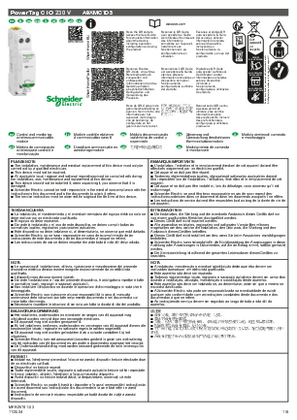

PowerTag C IO Control & monitoring wireless communication module-Instructions
ZIP

PowerTag C IO Control & monitoring wireless communication module-Instructions

VERSION

2.0

DATE

04 Nov 2024

REVISION

2.0

DOWNLOAD (ZIP) 2.5 MB

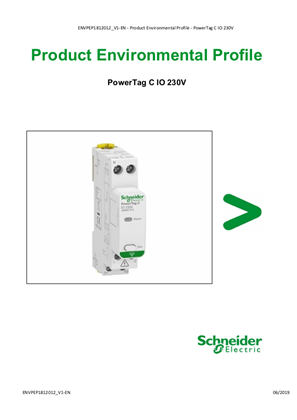

Acti9 - PowerTag C IO 230V - Product Environmental Profile
ZIP

Acti9 - PowerTag C IO 230V - Product Environmental Profile

VERSION

1.0

DATE

09 Jul 2024

REVISION

1.0

DOWNLOAD (ZIP) 344.4 KB

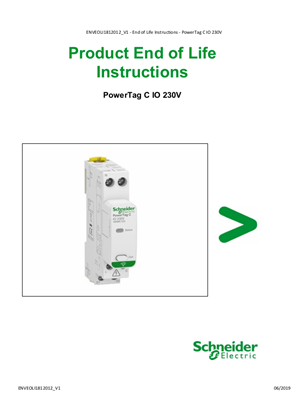

PowerTag C IO 230V - Product End of Life Instructions
ZIP

PowerTag C IO 230V - Product End of Life Instructions

VERSION

1.0

DATE

20 May 2024

REVISION

1.0

DOWNLOAD (ZIP) 358.9 KB
Wireless Communication Architectures With EcoStruxure Panel Server - Design Guide
ZIP

Wireless Communication Architectures With EcoStruxure Panel Server - Design Guide

VERSION

2.0

DATE

30 Sep 2025

REVISION

2.0

DOWNLOAD (ZIP) 5.4 MB

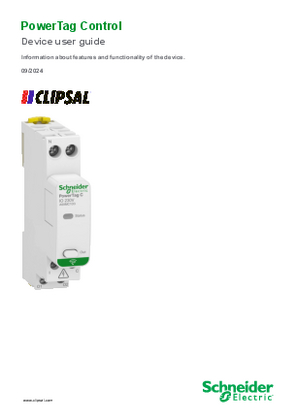

PowerTag Control - Device user guide
ZIP

PowerTag Control - Device user guide

VERSION

1.2

DATE

26 Nov 2024

REVISION

1.2

DOWNLOAD (ZIP) 10.6 MB
LED Lighting technical guide - How to control and protect LED lighting circuits?
ZIP

LED Lighting technical guide - How to control and protect LED lighting circuits?

VERSION

1.4

DATE

18 Apr 2025

REVISION

1.4

DOWNLOAD (ZIP) 21.4 MB
Lighting for chained-brand hotels: Single simple architecture for supervision and control solution
ZIP

Lighting for chained-brand hotels: Single simple architecture for supervision and control solution

VERSION

2.0

DATE

29 Sep 2023

REVISION

2.0

DOWNLOAD (ZIP) 178.7 KB
Facility Expert Small Business application for restaurant
ZIP

Facility Expert Small Business application for restaurant

VERSION

2.0

DATE

10 Dec 2021

REVISION

2.0

DOWNLOAD (ZIP) 485.9 KB

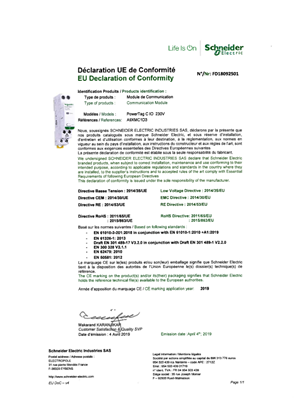

EU Declaration of Conformity
