Max 4 Consumer Switchboards, Switchboard Enclosure, Series 4C, 6 Module, Surface Mount, Full DIN Rail White Electric
Item Number: 4C6FD-WE

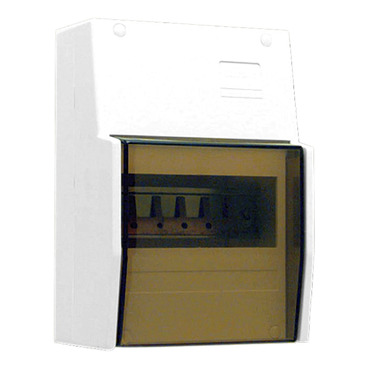

This MAX4 switchboard is a surface mounted distribution enclosure. This switchboard is composed of 1 row of 6 modules of 18mm. It can accomodate all types of modular switchgear. The colour of the switchboard is white electric.
Datasheet
Close
Specifications
Design
Range of product
Series 4C
Product brand
Clipsal
Physical
Device mounting
surface
Height
210 mm
Depth
103 mm
Mounting support
DIN rail
Eu rohs directive
Not applicable, out of EU RoHS legal scope
Environmental disclosure
ENVPEP121018EN
Circularity profile
N/A
Material
Material
plastic: housing
Others
Package 1 bare product quantity
1
Number of horizontal rows
1
Number of modules
6
Cover type
closed cover
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
10.7 cm
Package 1 width
15.7 cm
Package 1 length
21.6 cm
Package 1 weight
850.2 g
