Specifications
Design
Range
Acti9

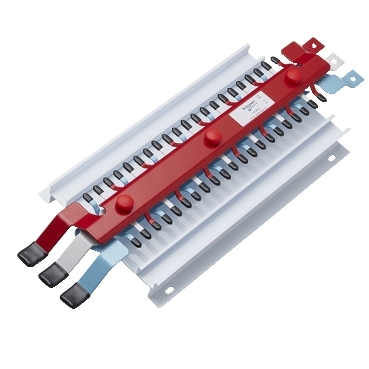

Product or component type
chassis
Device application
distribution
Physical
Range compatibility
Acti 9 Acti9 Isobar B distribution board
[in] rated current
250 A
Number of poles
42 x 18 mm
Length
380 mm
Width
215 mm
Eu rohs directive
Not applicable, out of EU RoHS legal scope
China rohs regulation
Product out of China RoHS scope. Substance declaration for your information
Circularity profile
N/A
Others
Package 1 bare product quantity
1
Device short name
MSC 18
Short-circuit withstand
25 kA 0.1 s
[icw] rated short-time withstand current
25 kA
Number of ways
1 way (incomer) - 3P|42 (outgoer)
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
24.2 cm
Package 1 width
9.4 cm
Package 1 length
68.5 cm
Package 1 weight
3.32 kg
