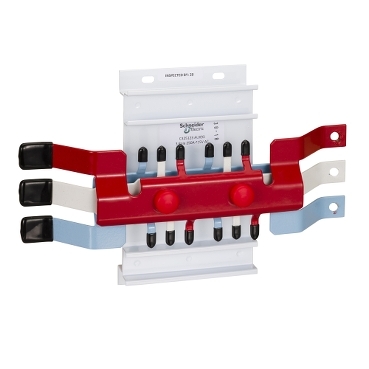

Acti9, MSC Chassis, 3PH, 250A, iC60 3P MCB with 9mm Auxiliary, 60 poles, Dual Feed
Item Number: C325603AUX93
Datasheet
Close
Specifications
Design
Range
Acti9
Product or component type
chassis
Device application
distribution
Physical
Range compatibility
Acti 9 Acti9 Isobar B distribution board
[in] rated current
250 A
Length
632 mm
Width
215 mm
Eu rohs directive
Under investigation
Others
Package 1 bare product quantity
1
Device short name
MSC AUX9
Short-circuit withstand
25 kA 0.1 s
[icw] rated short-time withstand current
25 kA
Number of ways
1 way (incomer) - 3P|60 ways (outgoer) - 3P with 9 mm
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 weight
1.000 kg
