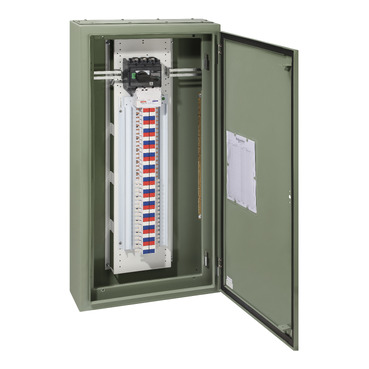

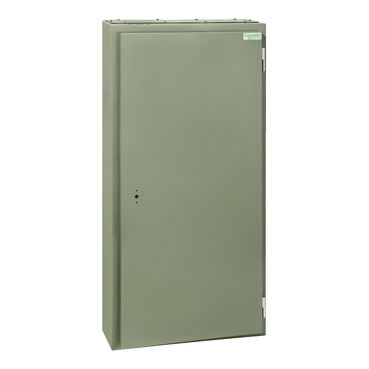

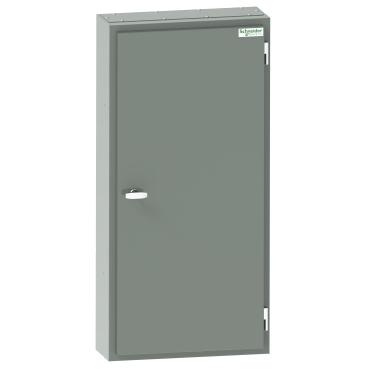

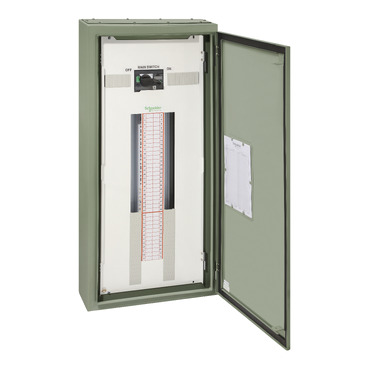

Acti9, MD Encapsulated distribution board, 72 poles, 250A main switch, 18mm, IP56, grey
Item Number: MD272E32
Specifications
Design
Range
Acti9
Product or component type
distribution board
Device application
distribution
Physical
Provided equipment
earth/neutral terminal block 165 A| pole filler| circuit schedule card| removable gland plates - top and bottom|2 keys| enclosure| door| SAU chassis| main switch| DIN rail
[ue] rated operational voltage
415 V
[ie] rated operational current
250 A
Number of poles
72 x 18 mm
Height
1200 mm
Width
580 mm
Depth
225 mm
Ip degree of protection
IP56
Eu rohs directive
Not applicable, out of EU RoHS legal scope
Others
Package 1 bare product quantity
1
Product name
Acti9 encapsulated DB
Device short name
MD
Enclosure type
weatherproof enclosure
Door type
external plain
Network frequency
50 Hz
Breaking capacity
25 kA
[ui] rated insulation voltage
500 V
[uimp] rated impulse withstand voltage
6 kV
Enclosure mounting
surface
Poles description
3P + N
Enclosure material
steel
Enclosure material
steel
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
25 cm
Package 1 width
60 cm
Package 1 length
121.5 cm
Package 1 weight
46 kg
Documents & downloads
hide showFilter items
-
All
-

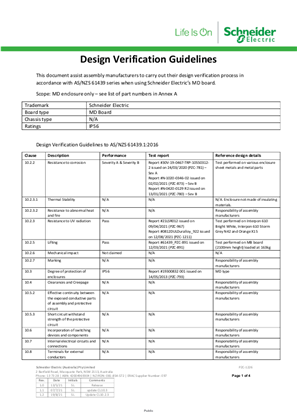

Specification Guide
-
