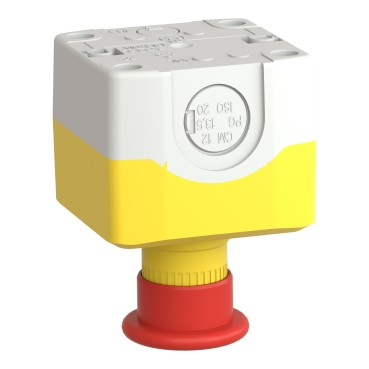

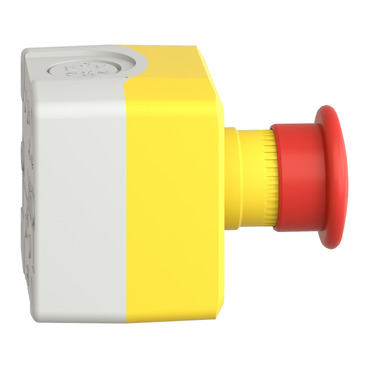

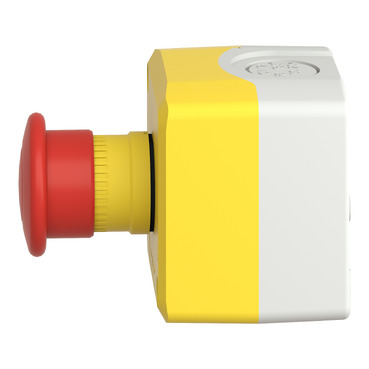

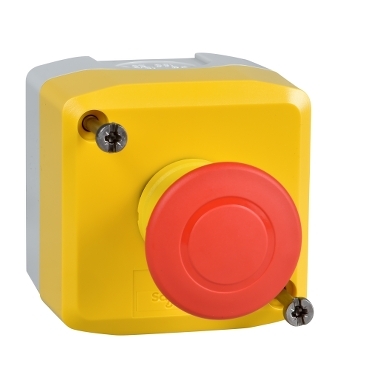

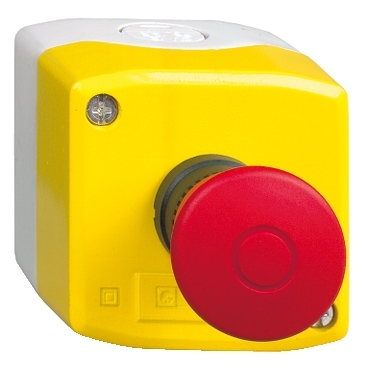

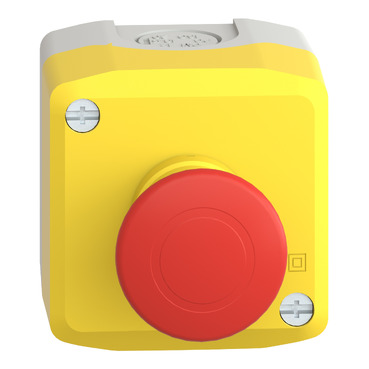

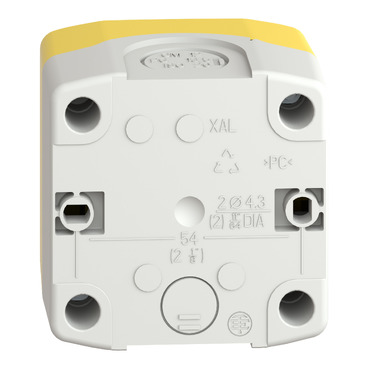

Harmony XALD XALK, Control station, plastic, yellow, 1 red mushroom head push button Ø40, emergency stop push-pull 1 NC, unmarked

Item Number: XALK198

1 PCE 0

Where To Buy

Datasheet

Download

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1		3389119048101	-

Specifications

Design

Range of product

Harmony XALK

Product or component type

complete control station

Product destination

for XB5 Ø 22 mm control and signalling units

Warranty

18 months

Physical

Cable entry

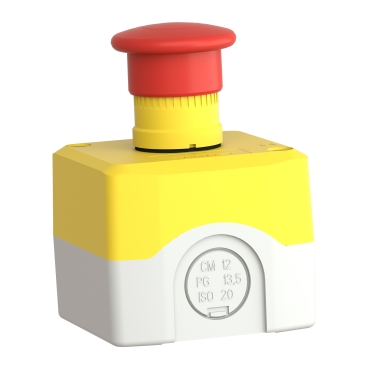

1 knock-out for cable entry 0-14 mm|2 knock-outs for Pg 13 cable gland and ISO M20 0-12 mm

Net weight

0.183 kg

Mechanical durability

300000 cycles

Connections - terminals

screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to EN/IEC 60947-1|screw clamp terminals, >= 1 x 0.22 mm² without cable end conforming to EN/IEC 60947-1

[ie] rated operational current

3 A at 240 V, AC-15, A600 conforming to EN/IEC 60947-5-1|6 A at 120 V, AC-15, A600 conforming to EN/IEC 60947-5-1|0.1 A at 600 V, DC-13, Q600 conforming to EN/IEC 60947-5-1|0.27 A at 250 V, DC-13, Q600 conforming to EN/IEC 60947-5-1|0.55 A at 125 V, DC-13, Q600 conforming to EN/IEC 60947-5-1|1.2 A at 600 V, AC-15, A600 conforming to EN/IEC 60947-5-1

Electrical durability

1000000 cycles, AC-15, 2 A at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C|1000000 cycles, AC-15, 3 A at 120 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C|1000000 cycles, AC-15, 4 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C|1000000 cycles, DC-13, 0.2 A at 110 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C|1000000 cycles, DC-13, 0.5 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C

Ambient air temperature for storage

-40...70 °C

Ambient air temperature for operation

-40...70 °C

Ip degree of protection

IP66 conforming to IEC 60529|IP67|IP69|IP69K

Ik degree of protection

IK03 conforming to EN 50102

Standards

Reach regulation

Free of Substances of Very High Concern above the threshold

Reach free of svhc

Yes

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Toxic heavy metal free

Yes

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

Environmental disclosure

ENVPEP1806010EN

Circularity profile

ENVEOLI1806010EN

Material

Material

polycarbonate

Contacts material

silver alloy (Ag/Ni)

Others

Package 1 bare product quantity

Device short name

XALK

Control station application

emergency stop function|emergency switching off function

Colour of base of enclosure

light grey (RAL 7035)

Colour of cover

yellow (RAL 1021)

Operator profile

1 mushroom head push-button

Operators description

red unmarked 1 NC

Reset

push-pull

Control station composition

1 mushroom head Ø 40 mm push-button, red 1 NC unmarked marking

Contact operation

slow-break

Resistance to high pressure washer

7000000 Pa at 55 °C, distance : 0.1 m

Positive opening

with conforming to EN/IEC 60947-5-1 appendix K

Operating travel

1.5 mm (NC changing electrical state)|4.3 mm (total travel)

Operating force

50 N

Tightening torque

0.8...1.2 N.m conforming to EN/IEC 60947...1

Shape of screw head

cross compatible with Philips no 1 screwdriver|cross compatible with pozidriv No 1 screwdriver|slotted compatible with flat Ø 4 mm screwdriver|slotted compatible with flat Ø 5.5 mm screwdriver

Short-circuit protection

10 A cartridge fuse type gG conforming to EN/IEC 60947-5-1

[ith] conventional free air thermal current

10 A conforming to EN/IEC 60947-5-1

[ui] rated insulation voltage

600 V (pollution degree 3) conforming to EN/IEC 60947-1

[uimp] rated impulse withstand voltage

6 kV conforming to EN/IEC 60947-1

Electrical reliability

λ < 10exp(-6) at 5 V, 1 mA conforming to EN/IEC 60947-5-4|λ < 10exp(-8) at 17 V, 5 mA conforming to EN/IEC 60947-5-4

Compatibility code

XALK

Protective treatment

Overvoltage category

class II conforming to IEC 60536

Nema degree of protection

NEMA 13|NEMA 4X

Vibration resistance

5 gn (f= 12-500 Hz) conforming to IEC 60068-2-6

Shock resistance

30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27|50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27

Unit type of package 1

PCE

Number of units in package 1

Package 1 height

9.7 cm

Package 1 width

7.1 cm

Package 1 length

7.1 cm

Package 1 weight

165.0 g

Unit type of package 2

S03

Number of units in package 2

Package 2 height

30.0 cm

Package 2 width

30.0 cm

Package 2 length

40.0 cm

Package 2 weight

7.114 kg

Weee

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Take-back

Product contributes to saved and avoided emissions

Removable battery

N/A

Carbon footprint (kg.eq.co2 per cr, total life cycle)

1.1883158397

Show all specifications

Documents & downloads

hide show

Colour ()

Harmony XALD XALK, Control station, plastic, yellow, 1 red mushroom head push button Ø40, emergency stop push-pull 1 NC, unmarked

Item Number: XALK198

Colour ()

Datasheet

Barcode

Specifications

Design

Physical

Material

Others

Documents & downloads

All

CAD Files and Packs

Technical Data Catalogues

Environmental Disclosure

End of Life Manual

Installation Instruction

Certificates (MSDS)

eTechPub

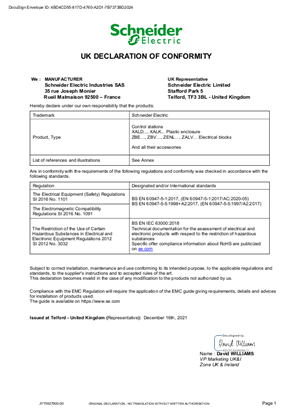

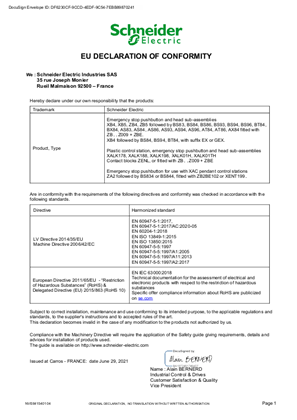

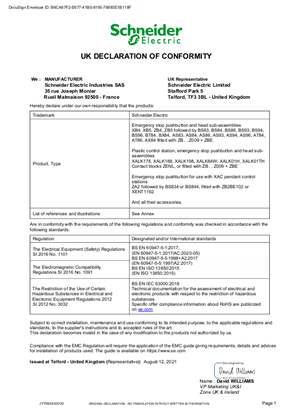

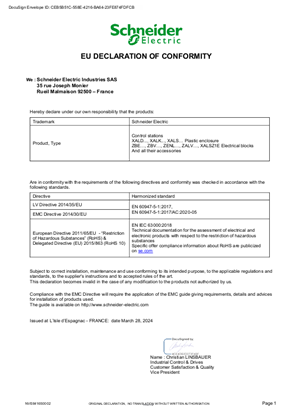

Declaration of Conformity

Control station, plastic, yellow, 1 red mushroom head push button Ø40, emergency stop push-pull 1 NC, unmarked

Catalog Harmony XALD and XALK plastic control stations English 07/2022

Harmony XAL Control Stations, Product Environmental Profile

Harmony XAL Control Stations, Product End of Life Instructions

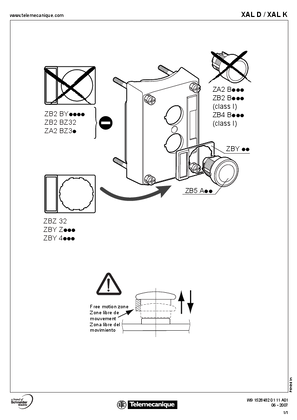

Harmony XALD/XALK Control Stations Instruction Sheet

XALD/K Harmony control station, Intruction Sheet

XB5EV Pilot lights

XB4B XB5A Control and signaling units and ZBE ZBP ZBV ZBZ ZENL ZALV Electrical blocks

XB4 XB5 ZBE ZEN ZBV ZAL ZB4 ZB5 ZBZ XD4 XD5 ZBY ZBC ZBD ZBG ZBP ZB2 Control and signaling units

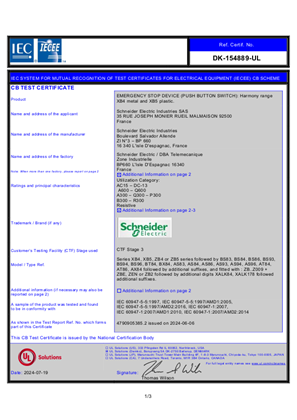

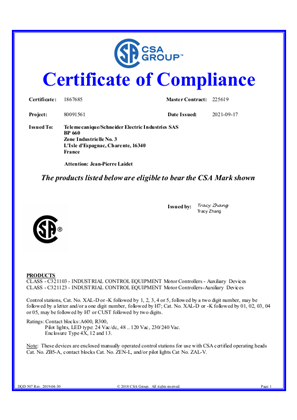

IECEE CB SCHEME Certificate XB4 XB5 Emergency stops

BV-Marine certificate-XB4B XB5A Control and signaling units, XD4PA XD5PA Joystick Controllers

DNV-GL Marine Certificate XB4B XB5A Control and signaling units, XD4PA XD5PA Joystick Controllers

Certificate No.00/00156

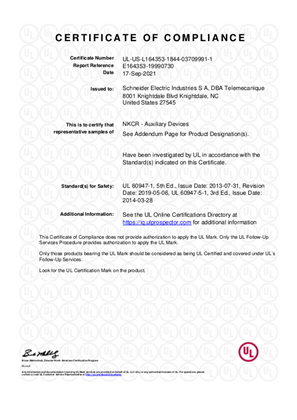

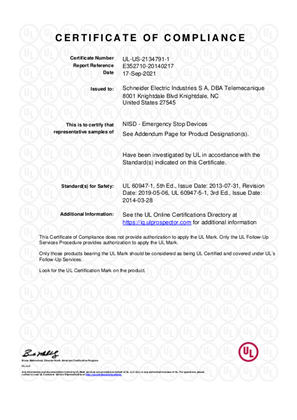

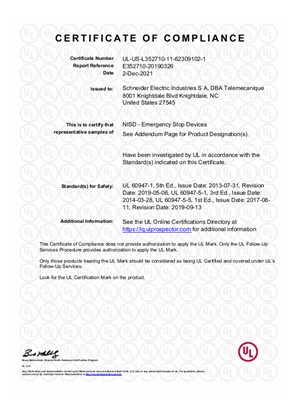

UL Certificate XB4 XB5 Emergency stop pushbuttons
